Ansmann APS 2250 L NEW max. 27 W 1201-2250L

Universal power supply for a wide range of devices

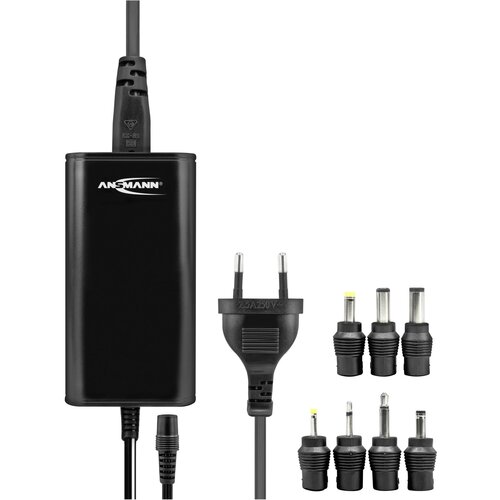

With the APS 2250 L you have the possibility to operate a variety of small electrical appliances such as pocket computers, digital cameras, measuring instruments, MP3 players, CD players etc. For compatibility with the many different devices, a sevenpiece connector set is supplied. The common jack plugs and hollow plugs contained in this set ensure ideal contact. No matter which device is to be operated.

The output voltage can be adjusted with a rotary switch on the back of the power supply unit. The APS 2250 H is short circuit proof and voltage stabilised. Suitable for loads up to max. 2,250 mA, 27 W power.

Features:

• Input voltage: 100240 V AC
• max. output: 27 W
• Reverse pole coupling: Yes
• Max. output current: 2.25 A
• Operating voltage range: 515 V
• AC frequency: 50/60 Hz

Connector set:

• Voltage: 13.5 V; Current: 1800 mA; Output: 24.3 W
• Voltage: 12 V; Current: 2250 mA; Output: 27 W
• Voltage: 15 V; Current: 1800 mA; Output: 27 W
• Voltage: 6 V; Current: 2250 mA; Output: 13.5 W
• Voltage: 5 V; Current: 2250 mA; Output: 11.25 W
• Voltage: 9 V; Current: 2250 mA; Output: 20.25 W
• Voltage: 7.5 V; Current: 2250 mA; Output: 16.9 W
