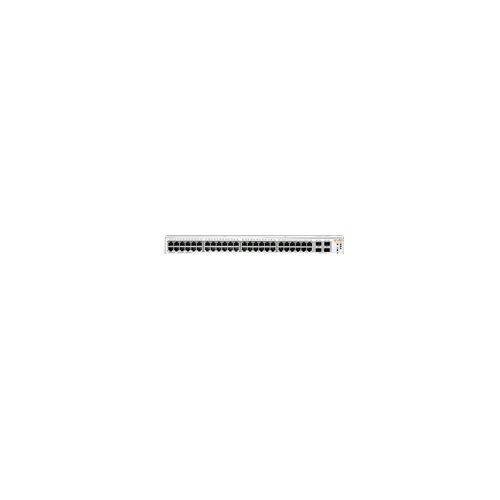

Aruba HPE Aruba Networking Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Design
Stackable: No
Rack mounting: Yes
Product colour: White
Form factor: 1U

Power
Power consumption (max): 520 W
AC input voltage: 100 240 V
Power supply included: Yes
Power source: AC
AC input frequency: 50 60 Hz

Security
Access Control List (ACL): Yes
IGMP snooping: Yes
DHCP features: DHCP client
SSH/SSL support: Yes

Operational conditions
Operating temperature (TT): 0 40 C
Operating altitude: 0 3048 m
Operating relative humidity (HH): 15 95%
Storage temperature (TT): 40 70 C
Storage relative humidity (HH): 15 95%

Management features
Switch layer: L2+
Cloudmanaged: Yes
Switch type: Managed
Webbased management: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Height: 43.9 mm
Width: 442.5 mm
Weight: 4.59 kg
Depth: 322.6 mm

Network
Port mirroring: Yes
Autosensing: Yes
Spanning tree protocol: Yes
Flow control support: Yes
Rate limiting: Yes
Link aggregation: Yes
Full duplex: Yes
Networking standards: IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab, IEEE 802.1D, IEEE 802.3z, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3af, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u
10G support: Yes
Auto MDI/MDIX: Yes
VLAN support: Yes

Performance
Builtin processor: Yes
Flash memory: 256 MB
Processor frequency: 800 MHz
Internal memory: 512 MB
Memory type: SDRAM / Flash
Processor model: ARM CortexA9

Ports & interfaces
SFP+ module slots quantity: 4
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ45 Ethernet ports quantity: 48

Data transmission
Latency (10100 Mbps): 4.5 s
Throughput: 130.95 Mpps
Latency (1 Gbps): 2.2 s
Latency (10 Gbps): 1.2 s
Jumbo frames support: Yes
Switching capacity: 176 Gbit/s
MAC address table: 16000 entries
Packet buffer memory: 1.5 MB

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 370 W
