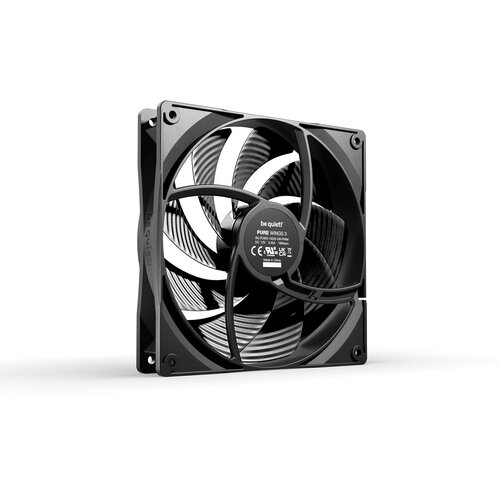

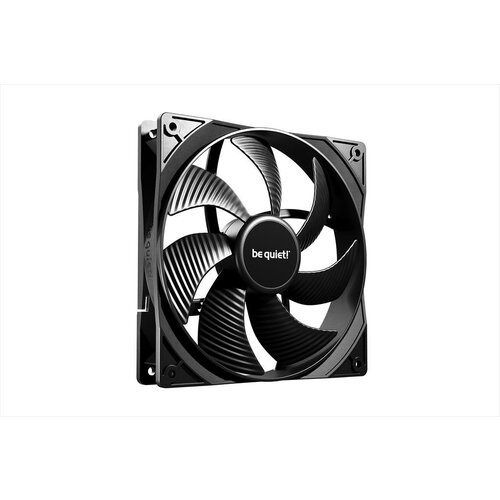

Be Quiet! Ventilator BE QUIET PURE WINGS 3 140mm PWM HS, BL109

Pure Wings 3 140mm PWM highspeed are the perfect complement for demanding PCs with exceptionally high performance and advanced features such as a closedloop motor for speed control.

Pure Wings 3 140mm PWM highspeed has a closedloop motor. This technology is comparable to cruise control in cars. If the fan works against a resistance, for example against a fan grille or a radiator, it rotates more slowly. A closed control loop constantly monitors the current fan speed and increases it to the target speed if necessary. As a result, the Pure Wings 3 140mm PWM highspeed always operates at the desired speed, regardless of the resistance.

For radiators and heat sinks
With a remarkably high air pressure of up to 2.44 mm / H2O, the Pure Wings 3 140 mm PWM highspeed is the best choice for watercooled and aircooled systems alike. The 9 airflowoptimised fan blades provide enough air pressure for this fan to deliver outstanding performance even in demanding configurations.

Features:

• Innovative motor with closedloop technology keeps the speed constant regardless of resistance
• Optimised fan frame for excellent performance on radiators
• Specially designed fan blades and optimised angle for exceptional air pressure
• Pure Wings 3 140mm PWM highspeed enables a very low minimum speed for very quiet operation
• Durable Rifle bearing with an operating life of 80,000 hours

Technical data:

• Dimensions (L x W x H): 140 x 140 x 25 mm
• Weight incl. connection cable: 188 g
• Bearing technology: Rifle
• Connection: 4pin
• Cable length: 460 mm
• Speed: 1800 rpm
• Delivery volume at 100%: 72.2 / 122.6 CFM / m3/h
• Air pressure at 100% PWM / 12V: 2.44 mm H2O
• Noise level at 100% PWM / 12V: 30.5 dB(A)
• Life expectancy @ 25 °C: 80000 hours
• Nominal voltage: 12 V
• Operating voltage range: 5 13.2 V
• Nominal current: 0.12 V
• Maximum current: 0.5 A
• Power consumption: 6.0 W
• Illumination: No
• Colour: black
