BenQ MX560

Display:

• Brightness: 4000 ANSI lumens
• Native resolution: 1024x768 (XGA)
• Native aspect ratio: 4:3
• Contrast ratio: 20,000:1
• Light source: Lamp
• Projection system: DLP
• Light source lifetime: Normal: 6,000 hrs, ECO 10,000 hrs, SmartEco: 10,000 hrs, LampSave 15,000 hrs.

Optics:

• Projection ratio: 1.96 2.15
• Zoom factor: 1.1x
• Lens: F/# 2.56 2.68, f 22 24.1 mm
• Keystone correction: 1D, (Auto) Vertical ± 40 degrees

Picture:

• Picture modes: 3D, Bright, Infographic, Presentation, Table, sRGB, User 1, User 2

Compatibility:

• Supported resolutions: VGA (640 x 480) to WUXGA (1920 x 1200)
• Horizontal frequency: 15,000 102,000 KHz

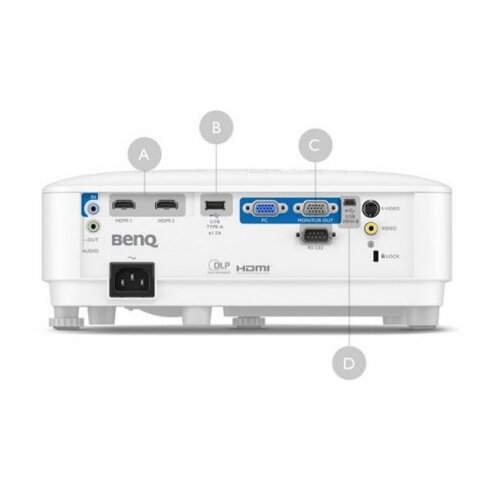

Interfaces:

• 1x PC input (DSub 15 pin)
• 1x monitor output (DSub 15 pin)
• 1x composite video input (Cinch)
• 1x SVideo input (Mini DIN 4 pin)
• 2x HDMI input: HDMI1 (1.4a/HDCP1.4), HDMI2 (1.4a/HDCP1.4)
• 1x USB type A
• 1x USB type Mini B
• 1x RS232 input (DB9 pin)

Audio:

• 1x loudspeaker: 10 W
• 1x audio input (3.5mm jack)
• 1x audio output (3.5mm jack)

Dimensions & weight:

• Dimensions (W x H x D): 296 x 120 x 221 mm
• Weight: 2.3 kg
