Blackmagic Design Blackmagic PYXIS 6K (PL-Mount)

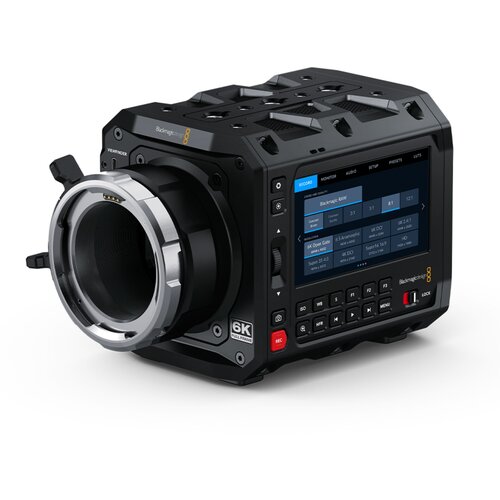

Blackmagic PYXIS 6K digital film camera (PLmount)

The Blackmagic Pyxis 6K PLmount version is a versatile digital film camera with a 36 x 24 mm full frame sensor and 13 stops of dynamic range. It supports PLmount fullframe lenses from Leica, Panasonic and Sigma and enables shooting in Blackmagic RAW. Thanks to its flexible mounting options, it is ideal for various production requirements.

Features:

• Customizable highend cinema camera
• Precise skin tones and rich, natural colors
• Versatile camera design for different production requirements
• Large fullframe 6K sensor (36 x 24 mm) with wide dynamic range
• Native resolution: 6048 x 4032 pixels (almost three times the size of a Super 35 sensor)
• Internal lowpass optical filter, matched to the sensor
• Two CFexpress media recorders
• Ethernet ports for media sharing via Blackmagic Cloud
• Simultaneous recording of 12bit Blackmagic RAW and small H.264 proxy files
• Light and robust
• Attachment to cranes, gimbals or drones possible
• 1/4" and 3/8" threaded holes on top and bottom of the housing
• Multiple mounting points and side plates for mounting optional accessories such as handles, microphones or SSDs
• Suitable for the production of feature films, documentaries and TV shows, ideal for lowbudget movies and TV spots as well as large format corporate films
• Suitable for cinematic shooting: Low depth of field, working without crop factor in anamorphic 6:5 ratio
• Dynamic range and sensitivity: 13 stops of dynamic range, dual native basic sensitivity up to ISO 25,600,
• Brilliant, lownoise images in all lighting conditions
• Shooting modes: up to 36 fps at full sensor resolution / up to 120 fps in crop mode
• Dualnative mode: high ISO sensitivity, full use of the sensor dynamic range and reduction of film grain and noise
• Supported resolutions from HD to DCI 4K and 6K
• Display: Large 4inch HDR touchscreen, high resolution for monitoring and viewing the recordings, Full HD resolution for precise framing and focusing, ideal as a focusing aid
• Display brightness: 1500 nits (also readable in sunlight)
• Clear, easily accessible controls
• Innovative side plates with 1/4" and 3/8" holes for attaching accessories for flexible rigging
• Capture in Blackmagic RAW format to control drawing, exposure and color for postprocessing
• Recording to CFexpress cards or external hard drives
• Intuitive Blackmagic OS operating system for full control of onscreen camera functions such as focus and exposure tools, 3D LUTs, HDR, metadata input, timecode, BlackmagicRAW settings and more
• Use data from 5G or 4G smartphones by connecting the Blackmagic to the smartphone’s USBC port or wired Ethernet via the camera’s Ethernet port for realtimeMedia transfer to postproduction teams worldwide
• Builtin microphones and professional audio inputs
• USBC for external drives and control via Ethernet
• Integrated SRT and RTMP live streaming
• Wireless remote control of the camera via Bluetooth
• Full 24.6megapixel photo capture with dedicated still button in Blackmagic RAW format
• Operation with BPU series high capacity batteries or 12V DC (batteries not included)
• Includes DaVinci Resolve Studio software (activation key)

Scope of delivery:

• Blackmagic PYXIS 6K
• Protective cap for lens connection
• PYXIS Standard Plate
• PYXIS SSD Plate
• 60W power supply with interlocking plug and international adapters
• DaVinci Resolve Studio Activation Key

Technical data:

• Sensor megapixel, effective: 24.6 MP
• Effective sensor size: 36 x 24 mm (full frames)
• Lens mount: PLmount
• Aperture control and autofocus: Aperture and focus on supported lenses
• Dynamic range: 13 levels
• Dual Native ISO: 400 and 3200
• Maximum resolution for filming: 6048 x 4032 pixels, 36 fps (Open Gate 3:2)
• Full HD recording possible with 120 fps
• Display: 4" touch screen, 1500 nits, 1920 x 1080 pixels
• Connections:
• Total video outputs:
  • 1x 12GSDI up to 2160p 60
  • 1x Viewfinder USBC with power, data, video and locking connector
• Analog audio inputs:
  • 1x analog mini XLR audio input, switchable between microphone with phantom power and line level (up to +14dBu)
  • 1x 3.5 mm stereo input
• Analog audio output:
  • 1x 3.5 mm headphone jack
• Reference inputs:
  • TriSync/Black Burst and Timecode
• Computer interface: USB TypeC for external drive recordings, PTP camera control and software updates
• 1x Ethernet RJ45 gigabit port with support for 10/100/1000 BASET
• Builtin stereo microphones and 1x mono speaker
• Media: 2x CFexpress Type B card slot
• Dimensions (L x W x H): 151 x 106 x 119 mm
• Weight: about 1.5 kg
