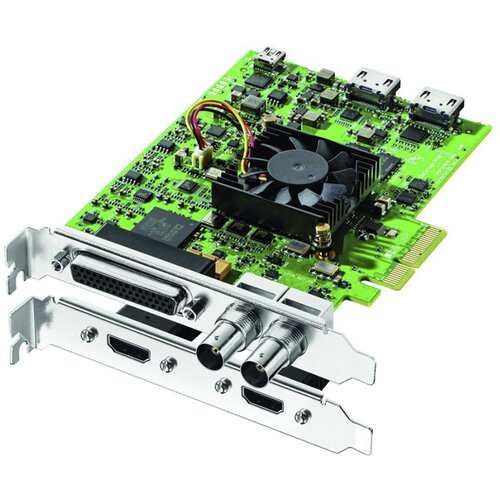

Blackmagic Design Decklink Studio 4K

Blackmagic Design Decklink Studio 4K

If you want to seamlessly switch between SD, HD, 2K and Ultra HD when working with a wide range of analogue video and audio devices, the DeckLink Studio 4K is the perfect solution. The DeckLink Studio 4K is equipped with a wide range of analogue and digital video connections, including SD/HD/Ultra HD 6GSDI, HDMI 1.4b, SD/HD component, FBAS, SVideo, balanced 4channel analogue audio, 2channel AES/EBU switchable to 6channel out and a reference input for Black Burst and TriSync. It also offers RS422 control interfaces for VTRs as well as keying in SD and a hardware down converter. Ideal for editing, painting and broadcast design.

Features:

SDI video inputs:

• 1x connector for 10bit SD/HD/2K/4K, supports 6G 4:2:2 and 3G 4:4:4

SDI video outputs:

• 1x connector for 10bit SD/HD/2K/4K, supports 6G 4:2:2 and 3G 4:4:4

Analogue video inputs:

• 1 YUV component connection via 3 BNC connectors, 1 for FBAS, 1 for SVideo. The component connection supports HD and SD

Analogue video outputs:

• 1x YUV component connection on 3 BNC connectors, 1 for FBAS, 1 for SVideo, 1 for SDSDI. The component connection supports HD and SD

Analogue audio inputs:

• 4 channels of professional balanced analogue audio via 1/4" jack connections

Analogue audio outputs:

• 4 channels of professional balanced analogue audio via 1/4" jack connections. Channels 3 and 4 are switchable to AES/EBU outputs

AES/EBU audio inputs:

• 2 channels of unbalanced audio with sample rate converter

AES/EBU audio outputs:

• 2 channels unbalanced. Analogue outputs 3 and 4 are switchable to AES/EBU outputs for audio 3 and 4 as well as outputs 5 and 6. 6 AES/EBU audio channels are available for output when using this feature

SDI audio inputs:

• 16 channels embedded in HD/2K/4K, 8 channels embedded in SD

SDI audio outputs:

• 16 channels embedded in HD/2K/4K, 8 channels embedded in SD

HDMI video inputs:

• 1 HDMI Type A connector

HDMI video outputs:

• 1 HDMI Type A connector

HDMI audio inputs:

• 8 channels embedded in SD, HD, 4K

HDMI audio outputs:

• 8 channels embedded in SD, HD, 4K

Sync input:

• TriSync or Black Burst

Device control:

• Sony compatible RS422 interfaces for VTR control, TxRx serial ports, direction reversible via software control

Computer interface:

• PCI Express with 4 lanes Generation 2, compatible with 4, 8 and 16lane PCI Express slots

Supported codecs:

• AVCIntra, AVCHD, Canon XF MPEG2, Digital SLR, DVNTSC, DVPAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR and DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, uncompressed 8 bit 4: 2:2, uncompressed 10 bit 4:2:2, uncompressed 10 bit 4:4:4

Realtime effects:

• DaVinci Resolve, Final Cut Pro X internal effects, Adobe Premiere Pro CC Mercury Playback Engine effects, Avid Media Composer internal effects

Colour space conversion:

• Hardwarebased in real time

Colour accuracy:

• 10 bit

Colour space:

• REC 601, REC 709
