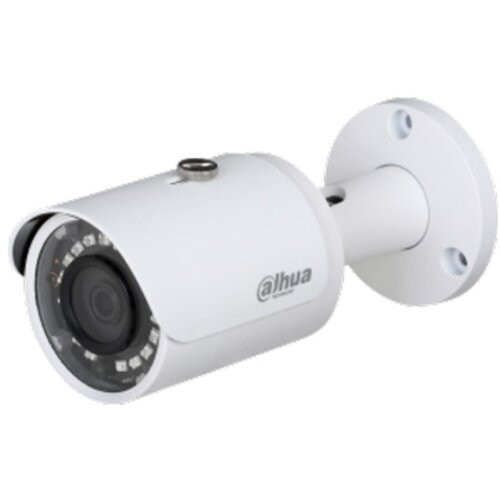

Dahua Technology IPC -HFW1230S-0280B-S5 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Design
Form factor: Bullet
International Protection (IP) code: IP67
Product colour: White
Housing material: Plastic, Metal
Mounting type: Ceiling/wall

Power
Power source type: DC, PoE
Power consumption (typical): 5.5 W
DC output voltage: 12

Security
Motion sensor: Yes
IP address filtering: Yes
Video motion detection: Yes
Intelligent Video Surveillance (IVS) system features: Intrusion, Tripwire
Mirror: Yes

Operational conditions
Storage temperature (TT): 30 60 C
Operating temperature (TT): 30 60 C

Weight & dimensions
Weight: 380 g
Width: 164.7 mm
Height: 70 mm
Depth: 70 mm

Network
WiFi: No
Networking standards: IEEE 802.1x
Bluetooth: No
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Number of users: 20 user(s)

System requirements
Mobile operating systems supported: iOS, Android

Performance
Connectivity technology: Wired
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Placement supported: Indoor & outdoor
Day/night mode: Yes

Packaging content
Number of cameras: 1

Audio
SignaltoNoise Ratio (SNR): 50 dB

Storage
Internal memory: 256 MB
Builtin HDD: No
ROM capacity: 32 MB

Ports & interfaces
Ethernet LAN (RJ45) ports: 1

Camera
Tilt angle range: 0 90
Camera shutter type: Electronic
Adjustment shutter speed: Auto/Manual
Camera pan control: Yes
White balance: Natural, Manual, Auto, Outdoor
Camera shutter speed: 1/3 s1/100,000
Camera tilt control: Yes
Angle of rotation: 360
Pan range: 0 360
Lens viewing angle, vertical: 55
Lens viewing angle, horizontal: 104

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of effective pixels (H x V): 1920 x 1080 pixels
Effective sensor resolution: 2 pixels
Number of sensors: 1
Sensor type: CMOS

Video
Maximum resolution: 1920 x 1080 pixels
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Total megapixels: 2 MP
Back Light Compensation (BLC): Yes
Region of Interest (ROI) encoding: Yes
Noise reduction: Yes
Video formats supported: H.265+, H.264+
Gain control type: Auto/Manual
Video compression formats: MJPEG, H.264, H.265
Privacy masking: Yes
Video recording: Yes
Highlight Compensation (HLC): Yes
Smart IR: Yes
Frame rate: 30 fps
Noise reduction technology: 3D noise reduction
Flip & mirror: Yes

Night vision
Number of illumination LEDs: 18
Night vision distance: 30 m
LED type: IR
Night vision: No

Lens system
Zoom capability: Yes
Digital zoom: 16x
Maximum aperture number: 2
Fixed focal length: 2.8 mm
Number of lenses: 1

Panoramic camera
SignaltoNoise Ratio (SNR) (panoramic camera): 50 dB
Minimum illumination (panoramic camera): 0.3 lx
Fixed focal length (panoramic camera): 600 mm
