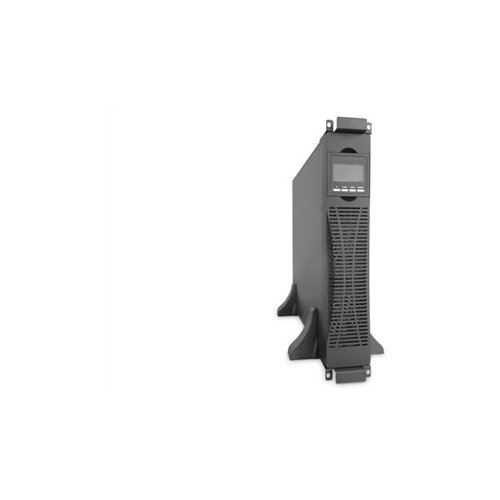

Digitus OnLine UPS | OnLine UPS Module DN-170107, 10000VA/10000W 2U LCD, LED, Pure Sine Wave, 86.5 x 440 mm x 620 mm, 18kg | 10000 VA | 10000 W | V

Features
Waveform: Pure sine
Efficiency: 93.5%
Number of input phases: 1
UPS topology: Doubleconversion (Online)
Output operation voltage (max): 240 V
Input current Total Harmonic Distortion (THD): 5%
Crest factor: 3:1
Emergency Power Off (EPO): Yes
Output voltage Total Harmonic Distortion (THD): 5%
ECO mode: Yes
Output voltage regulation: 5%
Number of output phases: 1
Output frequency regulation: 1 Hz
Output frequency: 50/60 Hz
Power factor: 0.99
Input operation voltage (min): 120 V
Input frequency: 45/66 Hz
Input operation voltage (max): 276 V
Output power capacity: 6 kVA
Output power: 10000 W
Response time: 20 ms
Output operation voltage (min): 208 V
Noise level: 55 dB

Design
Builtin fan: Yes
International Protection (IP) code: IP20
Housing material: Metal
Cooling type: Active
Product colour: Black
Rack capacity: 2U
Form factor: Rackmount/Tower
Display type: LCD + LED

Operational conditions
Operating temperature (TT): 0 40 C

Weight & dimensions
Depth: 620 mm
Weight: 18 kg
Height: 86.5 mm
Package width: 615 mm
Width: 440 mm

Packaging data
Package volume: 100682 cm
Manual: Yes

Ports & interfaces
Emergency Power Off (EPO) connector: Yes
USB port type: USB TypeB
USB 2.0 ports quantity: 1
Power plug: Hardwire
USB port: Yes

Battery
Hotswap battery: Yes
Charging current: 1 A
Battery recharge time: 8 h
Cold start: Yes
Number of batteries supported: 20

Other features
Size (imperial): 48.3 cm (19")

Logistics data
Harmonized System (HS) code: 85078000
UK Trade Tariff code: 85044086
