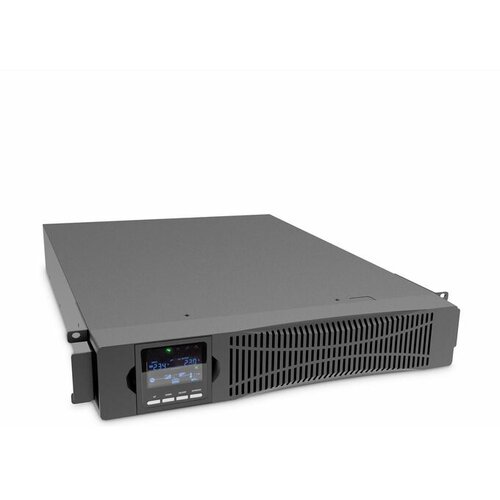

Digitus OnLine UPS, rack/tower, 3000VA, 3000W, LCD, 8 x C13, 1 x C19, RS-232, USB, SNMP card (optional), relay card (optional) | OnLine UPS | DN-170096, 3000 VA / 3000 W | 3000 VA | 3000 W | V | C20

Features
Maximum current: 16 A
Power factor: 1
Output power capacity: 1.5 kVA
UPS topology: Doubleconversion (Online)
Input operation voltage (max): 240 V
Efficiency (Online mode): 93%
Output power: 3000 W
Input operation voltage (min): 208 V
Automatic Voltage Regulation (AVR): Yes
Efficiency (ECO mode): 98%
Certification: CE

Design
Product colour: Black
Safety: IEC/EN620402,IEC6100042,IEC6100043,IEC6100044, IEC6100045,IEC6100046,IEC6100048
Display type: LCD
Form factor: Rackmount

Operational conditions
Operating relative humidity (HH): 20 90%
Storage temperature (TT): 25 55 C
Operating temperature (TT): 0 40 C
Operating altitude: 0 1500 m

Weight & dimensions
Weight: 26 kg
Depth: 600 mm
Height: 86.5 mm
Width: 440 mm
Package height: 200 mm
Package width: 555 mm

Packaging data
Package volume: 82064.5 cm

Ports & interfaces
AC outlets quantity: 9 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C19 coupler, C13 coupler
Serial interface: Yes
Serial interface type: RS232
Emergency Power Off (EPO) connector: Yes
USB port: Yes

Battery
Typical backup time at half load: 9 min
Battery recharge time: 4 h
Number of batteries supported: 6
Typical backup time at full load: 3 min
Battery capacity: 9 Ah
Battery voltage: 12 V

Other features
Size (imperial): 48.3 cm (19")

Logistics data
UK Trade Tariff code: 85044085
