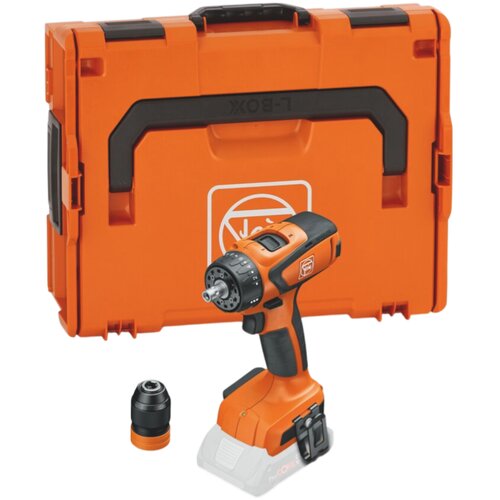

Fein ASCM 18 QSW AS N00 Cordless Drill Driver

The ASCM 18 QSW is an extremely light and compact 4speed screwdriver, which with its allmetal gear box offers optimal cutting speeds when drilling in metal and for selfdrilling screws up to 6 mm. Equipped with the brushless FEIN PowerDrive motor and the AMPShare interface (compatible with Bosch Professional, AMPShare and ProCORE batteries), it allows fast and efficient work in metal and wood, while extensive protection functions and ergonomic details ensure safe and comfortable handling.

Features:

• Allmetal gear with 4 gears for optimum cutting speeds for drilling in metal and selfdrilling screws up to 6 mm
• FEIN QuickIN system: Faster working in metal and wood with just one machine
• Compact and lightweight design
• Brushless FEIN PowerDrive motor with high efficiency and long service life
• QuickIN Allmetal chuck (120 Nm) with carbidetipped jaws and high clamping forces
• Mechanical torque setting
• AMPShare: More screw connections thanks to powerful battery technology (about 1100 screws with Ø 5 x 40 mm in wood) per battery charge when using a ProCORE 4 Ah
• AMPShare: More screw connections thanks to powerful battery technology (about 1100 screws Ø 5 x 40 mm in wood) per battery charge when using an optional ProCORE 4 Ah
• Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries
• High level of user protection: restart protection, electronic overload protection and brake
• Ergonomic and flexible handling thanks to the sidemounted bit and belt holders
• Wellequipped for every application Mobile working with the LBOXX system

Technical data:

• Battery voltage: 18 V
• Battery compatibility: LiIon / ProCORE LiIon
• Battery interface: 18 V AMPShare
• Motor: brushless
• Transmission: 4speed
• Accessory interface: QuickIN
• Idle speed: 400 / 700 / 1400 / 2500 U/min
• Max torque (hard / soft): 40 / 30 Nm
• Torque levels: 20 + 1
• Drill chuck span: 1.5 13 mm
• Screws: 8x 200 mm
• Drilling diameter of steel: 13 mm
• Drilling wood: 40 mm
• Tapping: M8
• Weight without battery: 1.30 kg
• Sound pressure level LpA: 80.3 dB
• Sound power level LWA: 88.3 dB
• Dimensions (L x W x H): approx. 201 x 79 x 235 mm

Scope of delivery:

• Fein ASCM 18 QSW AS N00 cordless drill
• 1x QuickIN Drill chuck (120 Nm)
• 1x belt clip
• 1x Bitgarage
• 1x plastic tool case (LBOXX 136)
• Note: Battery and charger not included
