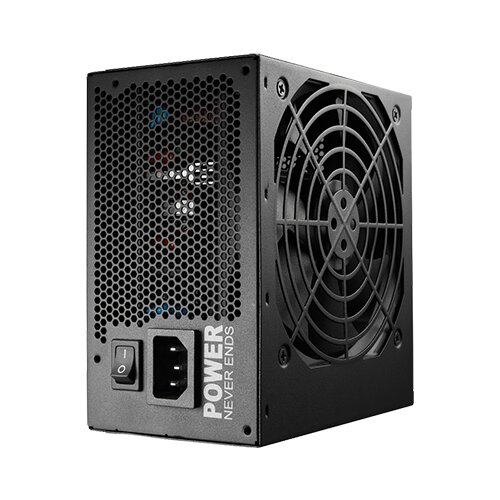

FSP "650W HEXA 85+ PRO 650"

Design
Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
On/off switch: Yes
Fan location: Top
Number of fans: 1 fan(s)

Power
Power protection features: Over power, Over current, Short circuit, Over voltage
Max output current (12V): 0.3 A
AC input frequency: 50 60 Hz
Hold time: 17 ms
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 20 A
Combined power (+12V): 650 W
Max output current (+5V): 20 A
AC input voltage: 100 240 V
Input current: 9 4 A
Efficiency: 85%
Total power: 650 W
Combined power (+5Vsb): 12.5 W
Combined power (+5V): 100 W
Combined power (+3.3V): 100 W
Max output current (+12V): 54.16 A
Max output current (+5Vsb): 2.5 A
Combined power (12V): 3.6 W

Weight & dimensions
Height: 86 mm
Width: 140 mm
Depth: 150 mm
Weight: 1.45 kg

Performance
Bearing technology: Sleeve
EPS version: 2.92
Power supply unit (PSU) form factor: ATX
Purpose: PC/Server
80 PLUS certification: 80 PLUS Bronze
ATX version: 2.5

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
Floppy disk drive connector: Yes
ATX Power connector (24pin): Yes
Peripheral (Molex) power connectors (4pin): 2
Number of SATA power connectors: 5
Cabling type: NonModular
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
PCI Express connector: Yes
Floppy drive power connector: 1
Motherboard power connector: 20+4 pin ATX

Logistics data
Harmonized System (HS) code: 84733020
