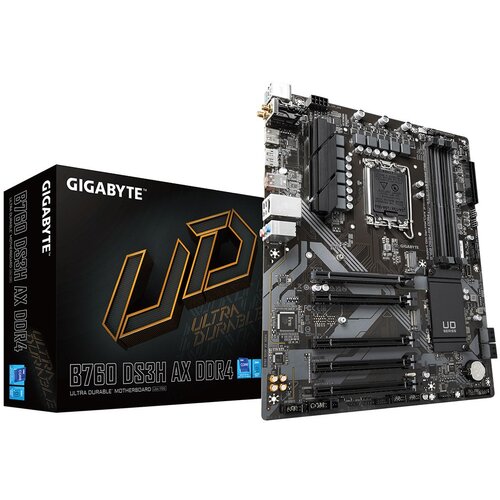

Gigabyte B760 DS3H AX DDR4 Motherboard - Supports Intel Core 14th CPUs, 8+2+1 Phases Digital VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6E, GbE LAN, USB 3.2 Gen 2

Technical details
Warranty period: 3 year(s)

Processor
Processor socket: LGA 1700
Compatible processor series: Intel Core i3, Intel Core i7, Intel Core i9, Intel Pentium Gold, Intel Core i5, Intel Celeron
Maximum internal memory supported by processor: 128 GB
Supported processor sockets: LGA 1700
Processor manufacturer: Intel

Graphics
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported
DirectX version: 12.0

Features
Motherboard form factor: ATX
PC health monitoring: Fan, Water cooling, Temperature, Voltage
Motherboard chipset: Intel B760 Express
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Memory
Supported memory module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 12GB, 32GB
Supported memory clock speeds: 2133, 3733, 4300, 4400, 5000, 3000, 5333 MHz, 3466, 3800, 2933, 3600, 3300, 5133, 4133, 4000, 3666, 4800, 4933, 4600 MHz, 2400, 4700, 3200, 2666, 4266, 4500, 3333, 3400, 3866
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory channels: Dualchannel
Memory slots type: DIMM
Supported memory types: DDR4SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 5333 MHz

Weight & dimensions
Width: 305 mm
Depth: 244 mm
Height: 35 mm

Network
Bluetooth: Yes
WiFi standards: 802.11g, 802.11b, WiFi 5 (802.11ac), 802.11a, WiFi 6 (802.11ax), WiFi 6E (802.11ax), WiFi 4 (802.11n)
WLAN controller model: RZ608
WiFi: Yes
Bluetooth version: 5.2
Top WiFi standard: WiFi 6E (802.11ax)
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet

Internal I/O
Front panel audio connector: Yes
S/PDIF out connector: Yes
USB 2.0 connectors: 2
Number of SATA III connectors: 4
Serial port headers: 1
ATX Power connector (24pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
CPU fan connector: Yes
EPS power connector (8pin): Yes
TPM connector: Yes
RGB LED pin header: Yes
Front panel connector: Yes
12V power connector: Yes

BIOS
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI

Packaging data
Package weight: 1.49 kg
Package width: 335 mm
Package height: 80 mm
Package depth: 270 mm
Bundled software: Norton Internet Security

Packaging content
Cables included: SATA
Batteries included: Yes

Storage controllers
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
RAID levels: 10, 0, 5, 1
Number of HDDs supported: 4

Rear panel I/O ports
USB connector type: USB TypeC, USB TypeA
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
DisplayPort version: 1.2
Ethernet LAN (RJ45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.0
USB 3.2 Gen 2x2 TypeC ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 1
WiFiAP antenna jack: 2
Microphone in: Yes
Headphone outputs: 3
PS/2 ports quantity: 1

Expansion slots
PCI Express x16 slots: 5
Number of M.2 (M) slots: 2

Battery
Number of battery cells: 1
Battery technology: LithiumManganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g

Logistics data
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
