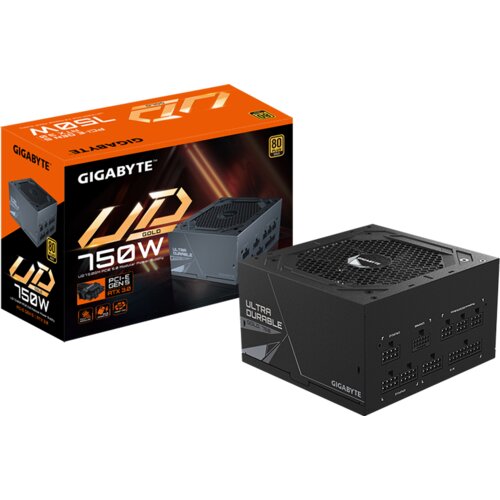

Gigabyte UD750GM PG5 power supply unit 750 W 20+4 pin ATX ATX Black

Design
Product colour: Black
Cooling type: Active
On/off switch: Yes
Number of fans: 1 fan(s)
Fan location: Top
Fan diameter: 12 cm

Power
Power protection features: Over power, Short circuit, Over voltage, Under voltage, Over current, Overheating
Input current: 12 A
AC input voltage: 100 240 V
Max output current (+3.3V): 20 A
Max output current (+5Vsb): 3 A
Combined power (+12V): 732 W
Combined power (12V): 3.6 W
Hold time: 16 ms
Efficiency: 90%
Max output current (+12V): 61 A
Power Factor Correction (PFC) type: Active
Combined power (+5V): 105 W
Max output current (12V): 2.3 A
Max output current (+5V): 20 A
Total power: 750 W
Combined power (+3.3V): 105 W
Combined power (+5Vsb): 15 W

Weight & dimensions
Height: 86 mm
Depth: 140 mm
Width: 150 mm

Performance
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
ATX version: 2.31
Power supply unit (PSU) form factor: ATX
Bearing technology: HYB
Purpose: PC

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
Floppy disk drive connector: Yes
Peripheral (Molex) power connectors (4pin): 3
SATA power cable length: 300 mm, 150, 600, 450 mm
Floppy drive power connector: 1
Floppy disk drive cable length: 15 cm
Cabling type: FullyModular
Number of SATA power connectors: 8
Motherboard power cable length: 61 cm
EPS power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 120, 500
PCI Express power cable length: 60 cm
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
CPU power cable length: 60 cm
PCI Express power connectors (6+2 pin): 4
Motherboard power connector: 20+4 pin ATX

Logistics data
Harmonized System (HS) code: 84733020
