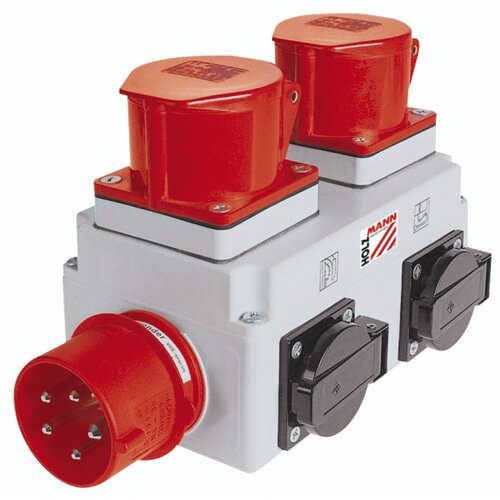

Holzmann ALA1 400V Compact Distribution Box

HOLZMANN ALA1_400V Automatic startup device for extraction system

Features:

• Up to 2 working machines can be connected to the master sockets
• After switching on the working machine, the extraction switches on automatically after 24 seconds
• Extraction runs for 34 seconds after the machine is switched off and extracts the residual dust

Technical data:

• Mains input: plug collar CEE 3P+N+E / 16A / 6h; phase inverter
• Outputs: 1 socket CEE 3P+N+E / 16A / 6h each; 1 socket Schuko 2P+E
• Slave switching delay: 230V/400V/16A, 230V/13.5A/3kW, 400V/9A/4kW
• Delay time in s: 24
• Connected load: min. 100W, max. 400V / 16A / 11000W
