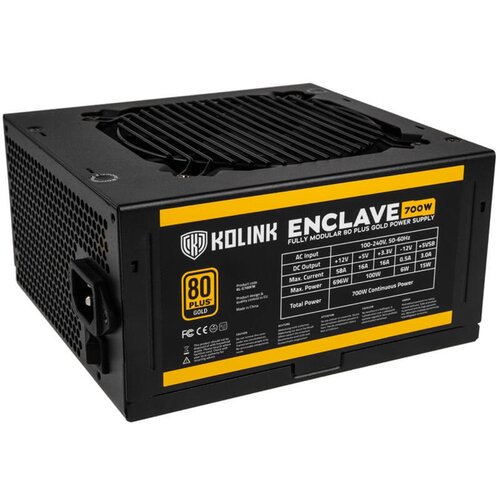

Kolink Enclave power supply unit 700 W 20+4 pin ATX ATX Black

Design
Product colour: Black
Number of fans: 1 fan(s)
Fan diameter: 12 cm

Power
Combined power (+12V): 696 W
Max output current (+5Vsb): 3 A
Power Factor Correction (PFC) type: Active
AC input frequency: 50 60 Hz
Power protection features: Overload, Under voltage, Short circuit, Over voltage
Combined power (+5Vsb): 15 W
Max output current (+5V): 16 A
AC input voltage: 100 240 V
Combined power (12V): 6 W
Combined power (+5V): 100 W
Combined power (+3.3V): 100 W
Max output current (+12V): 58 A
Input current: 6 A
Efficiency: 90%
Max output current (12V): 0.5 A
Total power: 700 W
Max output current (+3.3V): 16 A

Operational conditions
Operating temperature (TT): 0 45 C

Weight & dimensions
Weight: 2.01 kg
Width: 150 mm
Height: 86 mm
Depth: 160 mm
Certification: CB, CE, RoHS

Performance
Purpose: PC/Server
ATX version: 2.31
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold

Packaging data
Package width: 299 mm
Package type: Box
Package height: 249 mm
Package weight: 2.56 kg
Package depth: 112 mm

Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA

Ports & interfaces
Cabling type: FullyModular
PCI Express power connectors (6+2 pin): 4
Number of SATA power connectors: 8
Motherboard power cable length: 50 cm
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
CPU power cable length: 65 cm
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4pin): 4
