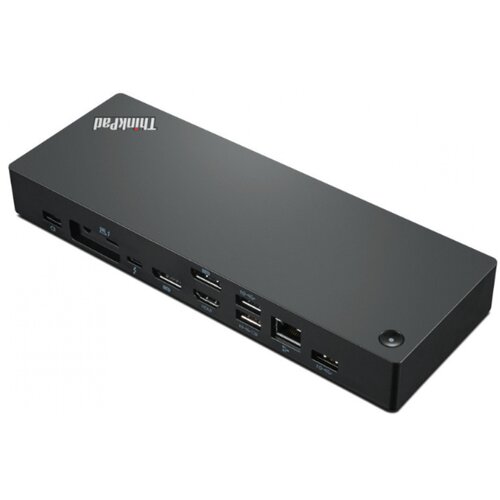

Lenovo ThinkPad Thunderbolt 4 Workstation Dock 40B00300EU

Power
Output current: 15 A
Power consumption (max): 230 W
Power supply: 300 W
Output voltage: 20 V

Operational conditions
Operating temperature (TT): 0 40 C
Operating relative humidity (HH): 5 95%

Weight & dimensions
Depth: 80 mm
Height: 30 mm
Width: 220 mm
Weight: 450 g

Network
Ethernet LAN: Yes
Ethernet LAN (RJ45) ports: 1
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Certification: cULus, FCC, ICES, NOM

Performance
Cable lock slot type: Kensington
Maximum digital resolution: 7680 x 4320 pixels
Maximum refresh rate: 30 Hz
Data transfer rate: 40 Gbit/s
Card reader integrated: No
VESA mounting: Yes
Number of displays supported: 4
Cable lock slot: Yes
LED indicators: Yes
Product colour: Red, Black
HD type: 8K Ultra HD

Packaging data
Package depth: 195 mm
Package height: 85 mm
Package width: 270 mm
Quantity per pack: 1 pc(s)
Package weight: 1.9 kg

Packaging content
AC adapter included: Yes
Warranty card: Yes
Cables included: AC

Software
Windows operating systems supported: Windows 10

Audio
Builtin speaker(s): No

Ports & interfaces
Combo headphone/mic port: Yes
Thunderbolt 4 ports quantity: 1
HDMI version: 2.1
Microphone in: No
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) TypeA ports quantity: 4
USB Power Delivery: Yes
USB Power Delivery up to: 230 W
USB 3.2 Gen 1 (3.1 Gen 1) TypeC ports quantity: 1
Host interface: Thunderbolt 4
DisplayPorts quantity: 2
DisplayPort version: 1.4
DCin jack: Yes
Connectivity technology: Wired

Logistics data
Harmonized System (HS) code: 84733020
