Metabo Pump Mounting Set MSS 380 HWW M. ARMAT.

Features:

• Mounting on the suction nozzle of all domestic waterworks with 1" internal thread
• Filter with a pressure resistance of 28 bar protects the pump and irrigation system from sand and dirt
• Nonreturn valve: prevents the water from flowing back into the well or cistern
• Ball valve (closed): prevents water from flowing back into the well (during maintenance work in the suction area, e.g. pump disassembly or filter cleaning)
• Quickrelease coupling as a connection option for suction hose sets
• Sealing tape: Sealing without hemp and without sealing paste
• Length approx. 380 mm
• Colour: blue / transparent

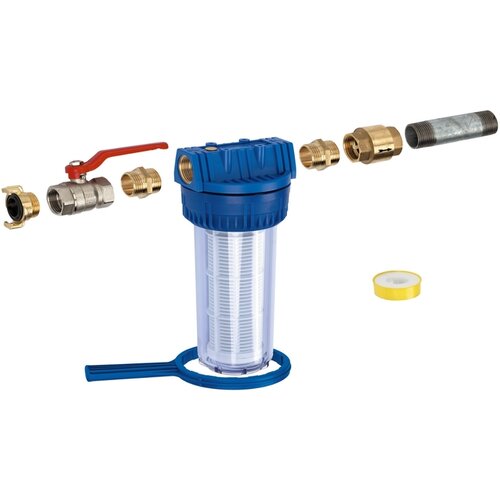

Contents of the set:

• Filter spanner for loosening the filter bell
• Domestic waterworks filter, long, 1" internal thread brass
• Washable filter insert, 80 my
• Double nipple brass, 1" female thread x 1" female thread
• Nonreturn valve brass 1" female thread x 1" female thread
• Ball valve, nickelplated brass, 1" female thread x 1" female thread
• Quick coupling brass, 1" male thread
• Galvanised pipe nipple, 1" male thread x 1" male thread x 100 mm
• Thread sealing tape, 12 m roll
