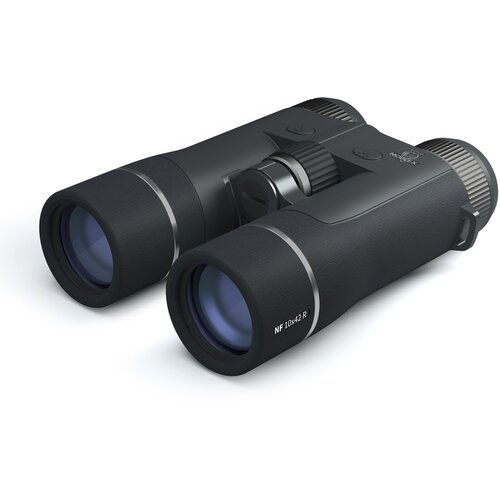

NOBLEX NF 10x42 R advanced with Range Finder

NOBLEX NF 10x42 R advanced: Binoculars with rangefinder

The NF 10x42 of the advanced line offers the user highperformance optics with multicoated lens elements and a large field of view. The integrated laser rangefinder determines the safe distance to game up to 1,200 metres. The measuring range for more reflective objects is even extended to 2,300 metres.

With the highcontrast and sharp image from the centre to the edge, even the smallest details can be detected. People with defective vision will enjoy the twistout eyecups and can see the entire field of view even when wearing glasses.

Operation is done with only two control buttons. For hunting in the mountains, angle measurement has also been added. In contrast to the conventional, direct distance measurement, the ballistic deviation is taken into account in this case. The angle compensation is displayed in metres, directly in the field of view next to the shooting angle.

With bright OLED display
With a simple press of a button, the eyesafe measurement with the Class 1 laser is accurate to within one metre in just 0.3 seconds. The measured value is displayed on the centrally mirrored red OLED display and can be read safely on a dark background. The NOBLEX engineers have placed special emphasis on very easy handling with only two control buttons for full functionality.

Continuous measurement
In difficult terrain or with moving objects, the measurement can be continuous, providing the user with a continuous reading. If desired, the brightness can be adjusted in six steps.

Sophisticated angle measurement
Hunting in the mountains makes angle measurement indispensable. In contrast to conventional, direct distance measurement, the ballistic deviation is taken into account in this case. The angle compensation is displayed in metres, directly in the field of view next to the shooting angle.

Sophisticated measuring modes
Thanks to the various measuring modes, a suitable algorithm also determines the distance in adverse weather conditions such as light fog or even rain. In addition, the software can also determine the distance to the nearest point, for example in the case of staggered distant objects.

Features:

• Distance measurement on game up to 1,200 m
• Ballistic angle compensation
• Scan and rain mode
• Very easy operation with only two buttons
• 6fold adjustable, red OLED display
• Magnification: 10x
• Ø objective aperture: 42 mm
• Field of view (at 1000 m): 105 m
• Closeup distance: 5.0 m
• Ø Exit pupil: 4.2 mm
• Exit pupil longitudinal distance: 16 mm
• Diopter compensation: ±5.0 dpt
• Twilight power: 20.5
• Tightness: IPX7
• Filling: nitrogen
• Laser class: 1
• Measuring range: 52,300 m
• Display accuracy: ±1 m
• Measuring accuracy: ±0.1
• Angle measuring range: ±90
• Measuring accuracy: 1.0
• Resolution for angular measurement: 0.5
• Dimensions (W x H): 19 x 14 cm
• Weight: 980 g
