NOVOFLEX VR-System PRO II Heavy Duty

NOVOFLEX VR System PRO II Heavy Duty

The VRSystem PRO II Heavy Duty is the professional shooting system for multiline, cubic panoramas and the heaviest camera equipment (e.g. cameras with battery handle and long focal lengths). With this adjustment system, the camera can be rotated horizontally and vertically around the nodal point. Engravings on the clamping plates make any cameraspecific adjustment reproducible.

One adjustment allows shooting in 8 different detented angle steps:

• 72 detent positions (5)
• 48 detent positions (7.5)
• 30 clickstop positions (12)
• 18 detent positions (20)
• 16 detent positions (22.5)
• 12 locking positions (30)
• 10 locking positions (36)
• 8 locking positions (45)
• Stepless (360)

The vertical rotation adjustment is facilitated by a counterrotating engraving of 2x 180.

The vertical panorama plate is equipped with fixed detents every 10 as well as with a clamp which is capable of holding even the heaviest camera equipment securely.

Application:
The VR system PRO II HD allows parallaxfree, horizontal and vertical panning around the nodal point of the lens. It is therefore predestined for multiline panoramas in perspectivecorrected surface or spherical projection. But also classic, singleline cylindrical panoramas can be easily realised thanks to the lower panorama plate that can be locked in 8 angular steps. Comfort, stability and precision are the hallmarks of this professional panorama head.

Who is it suitable for?
The PRO II HD panorama VR system is the solution for professional photographers who deal with all facets of panorama photography. Whether spherical panorama, perspectivecorrected area panorama or classic cylinder panorama, the VR system PRO II masters all types of game even with a heavy professional DSLR.

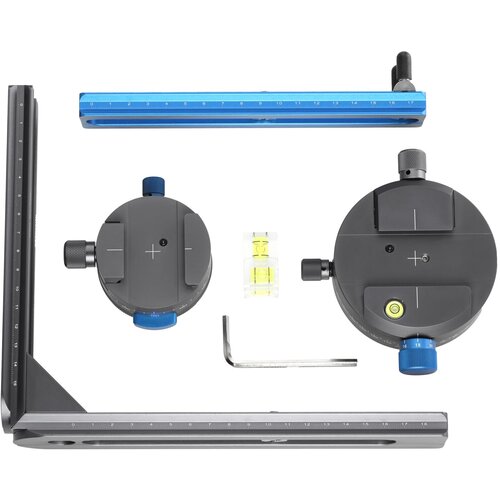

Scope of delivery:

• Lockable panorama plate PanoramaQ PRO II
• Langle QPLVR PRO (19 x 23 cm)
• Snapon panorama plate PANORAMA VR III
• Camera plate with scale
• Spirit level for flash shoe
• Printed manual

Technical data:

• Suitable lenses: focal lengths from 10 to 220mm
• Adjustment travel in opt. axis: 150 mm
• Recording type: singleline and multiline
• Panorama type: area, cylinder and sphere projection
• Recommended software: PTGui, Photoshop
• Weight: 1690 g
• Tripod/camera connection: 1/4" or 3/8" / 1/4"
