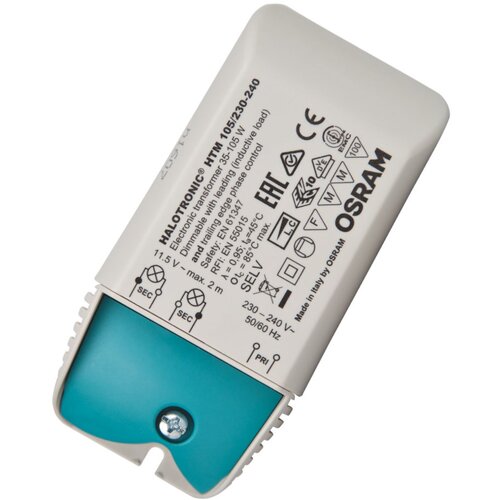

Osram Halotronic-Trafo Mouse HTM 105/230-240

Osram Halotronic transformer Mouse HTM 105/230240

Features:

• Very low power loss due to high efficiency
• Strain relief suitable for different cable types (HTM)
• Suitable for spacecritical installation thanks to compact, functional design
• Extremely compact transformer for very spacecritical installation conditions (HTN)
• Lampfriendly operation across the entire partial load range for long lamp life
• Lamp wattage: 35 105 W
• Maximum output power: 105 W
• Mains current: 0.41 A (effective)
• Rated voltage: 230...240 V
• Mains power factor: λ 0.99
• Operating frequency: 43 kHz (approx.)
• Nominal output voltage: 11.3 / 11.4 V (at 105 / 35 W)
• Input voltage: AC 207 264 V
• Mains frequency: 50 60 Hz
• System power: 111.00 W
• Efficiency at full load: 95 %
• Input voltage range: 230 240 V
• Max. No. ECG on fuse aut. 10 A (B): 23
• Max. No. ECGs on fuse aut. 16 A (B): 38
• Galvanic isolation primary/secondary: 4.00 kV (effective)
• Inrush current: 1 A (maximum)
• Dimensions (LxWxH): 108 x 52 x 33 mm
• Weight: 125 g
