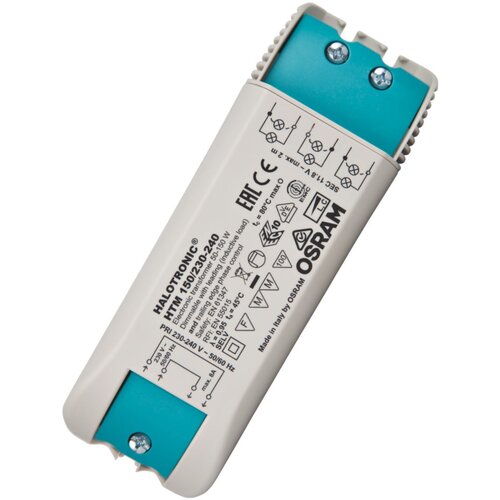

Osram Halotronic-Trafo Mouse HTM 150/230-240

Osram Halotronic transformer Mouse HTM 150/230240

Features:

• Shortcircuit protection, overload protection, overtemperature protection: electronically reversible
• Galvanic isolation between primary and secondary side
• Dimmable via leading edge phase control (without HTN) and trailing edge phase control
• Very low power loss due to high efficiency
• Strain relief suitable for different cable types (HTM)
• Suitable for spacecritical installation thanks to compact, functional design
• Extremely compact transformer for very spacecritical installation conditions (HTN)
• Lampfriendly operation in the entire partial load range for long lamps
• Lamp wattage: 50 150 W
• Maximum output power: 150 W
• Mains current: 0.57 A (effective)
• Rated voltage: 230...240 V
• Mains power factor: λ 0.99
• Operating frequency: 40 kHz (approx.)
• Nominal output voltage: 11.4 / 11.5 V (at 150 / 50 W)
• Input voltage: AC 207 264 V
• Mains frequency: 50 60 Hz
• System power: 157.00 W
• Efficiency at full load: 95 %
• Input voltage range: 230 240 V
• Max. No. ECG on automatic fuse: 10 A (B) 16
• Max. No. ECGs on automatic fuse: 16 A (B) 26
• Galvanic isolation primary/secondary: 4.00 kV (effective)
• Inrush current: 1.1 A (maximum)
• Dimensions: 153 x 54 x 36 mm
• Weight: 185 g
