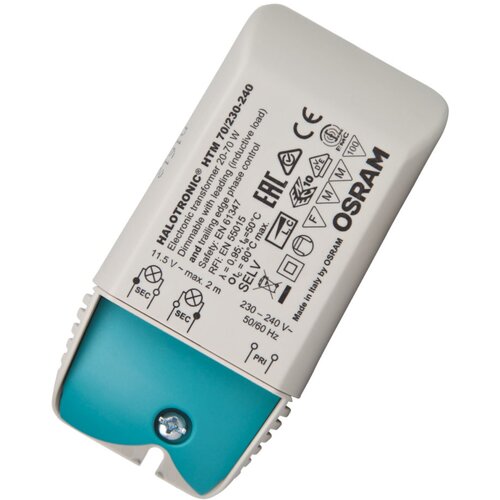

Osram Halotronic-Trafo Mouse HTM 70/230-240

Osram Halotronic transformer Mouse HTM 70/230240

Features:

• Very low power loss due to high efficiency
• Strain relief suitable for different cable types (HTM)
• Suitable for spacecritical installation thanks to compact, functional design
• Extremely compact transformer for very spacecritical installation conditions (HTN)
• Lampfriendly operation across the entire partial load range for long lamp life
• Lamp wattage: 20 70 W
• Maximum output power: 70 W
• Mains current: 0.27 A (effective)
• Rated voltage: 230 240 V
• Mains power factor: λ 0.99
• Operating frequency: 52 kHz (approx.)
• Nominal output voltage: 11.2 V (at 70 / 20 W)
• Input voltage: AC 207 264 V
• Mains frequency: 50 60 Hz
• System power: 74.00 W
• Efficiency at full load: 95 %
• Input voltage range: 230 240 V
• Max. No. ECG on fuse aut. 10 A (B): 37
• Max. No. ECGs on fuse aut. 16 A (B): 59
• Galvanic isolation primary/secondary: 4.00 kV (effective)
• Inrush current: 0.3 A (maximum)
• Dimensions: 108 x 52 x 33 mm
• Weight: 110 g
