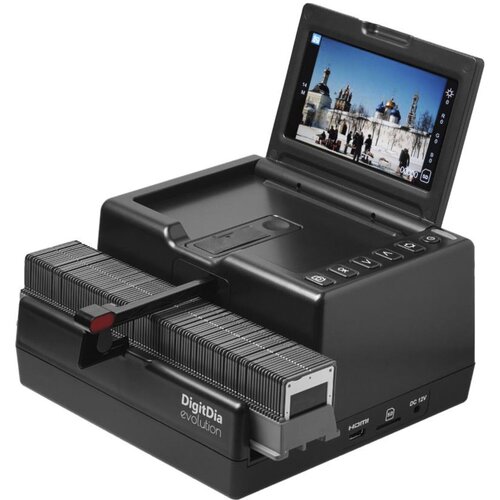

Reflecta DigitDia evolution

Reflecta DigitDia evolution

With the innovative DigitDia evolution you can now view and digitise your entire slide archive directly from the magazines. The computerindependent device is very easy to operate. As with a conventional slide projector, the slides are played back immediately after being inserted into the device. This is done on a brilliant IPS display that is integrated in the unit. Optionally, you can also connect an external monitor, a TV set or a projector via the HDMI output of the DigitDia evolution. This means that a classic slide show is once again possible. Both playback and digitisation of the slides can be done manually or automatically. The automatic scanning of a complete magazine with 50 slides is done in only four minutes in best resolution, whereby the digital images are saved directly on an SD card.

Features:

• Slides that can be used: frames (5 x 5 cm) with a thickness of up to 3.2 mm
• Image sensor: 1 / 2.33" 15.3 megapixel CMOS sensor
• Resolution: 4608 x 3072 pixels or 5760 x 3840 pixels (interp.)
• Scanning speed: less than 5 seconds per slide (automatic mode)
• Display: 17.8 cm (7") IPS with wide viewing angle
• Colour correction: red, green, blue (RGB 2,0 EV to +2,0 EV)
• Exposure compensation: automatic manual (2,0 EV to +2,0 EV)
• Light source: diffuse daylight LED light source for optimal colour rendering. Reduces dust and scratches.
• Digital output format: JPEG (low compression)
• Usable magazines: Universal (DIN 108), CS, LKM
• Supported memory cards: SD/SDHC cards with up to 128 GB
• Power supply: Mains adapter 12V/1.5A
• Video interface: HDMI (Type A)
