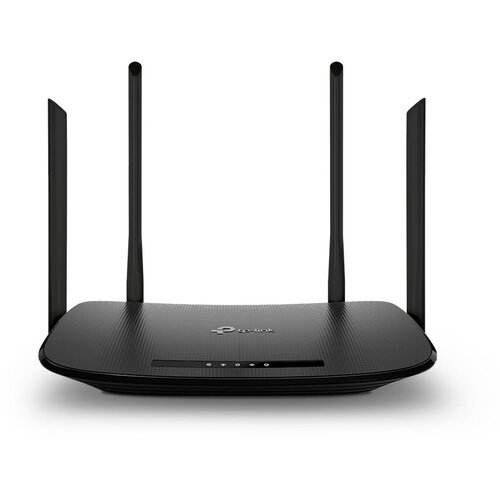

Tp-link AC1200 Wireless VDSL/ADSL Modem Router

Design
Product colour: Black
Product type: Tabletop router
On/off switch: Yes

Power
Output current: 1 A
Output voltage: 12 V

Security
Security algorithms: IPSec, WPA, WPA2, WPAPSK, WEP, WPA2PSK
Filtering: Yes
MAC address filtering: Yes
Network address translation (NAT): Yes
Firewall: Yes
DMZ support: Yes

Operational conditions
Storage temperature (TT): 40 70 C
Operating relative humidity (HH): 10 90%
Storage relative humidity (HH): 5 90%
Operating temperature (TT): 0 40 C

Management features
Reset button: Yes
Quality of Service (QoS) support: Yes
Webbased management: Yes
WPS push button: Yes

Weight & dimensions
Width: 385 mm
Height: 290 mm
Depth: 76 mm

Network
Networking standards: IEEE 802.11b, IEEE 802.11h, IEEE 802.11a, IEEE 802.11g, IEEE 802.11ac
Ethernet LAN data rates: 10, 100 Mbit/s
Ethernet LAN: Yes
Dynamic DNS (DDNS): Yes
Ethernet LAN interface type: Fast Ethernet
VPN Passthrough: Yes
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n): 20 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g): 20 dBmW
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b): 20 dBmW

System requirements
Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes
Mac compatibility: Yes

Packaging data
Package width: 330 mm
Package weight: 840 g
Package height: 76 mm
Package depth: 240 mm

Packaging content
AC adapter included: Yes
Quick start guide: Yes
Cables included: Phone (RJ11), LAN (RJ45)

Wireless LAN features
WiFi standards: 802.11g, WiFi 5 (802.11ac), 802.11a, 802.11b, WiFi 4 (802.11n)
Top WiFi standard: WiFi 5 (802.11ac)
WiFi band: Dualband (2.4 GHz / 5 GHz)
WLAN data transfer rate (max): 867 Mbit/s
WLAN data transfer rate (first band): 300 Mbit/s
WLAN data transfer rate (second band): 867 Mbit/s

Protocols
DHCP client: Yes
Universal Plug and Play (UPnP): Yes
DHCP server: Yes

Ports & interfaces
Ethernet LAN (RJ45) ports: 4
RJ11 ports quantity: 1
USB port: No

Antenna
Antennas quantity: 4
Antenna design: External

WAN connection
3G/4G USB modem compatibility: No
Ethernet WAN: Yes
SIM card slot: No
DSL WAN: Yes

Logistics data
Harmonized System (HS) code: 85176990

Mobile network
4G: No
3G: No

DSL features
ADSL2+: Yes
ADSL2: Yes
VDSL2: Yes
ADSL: Yes
