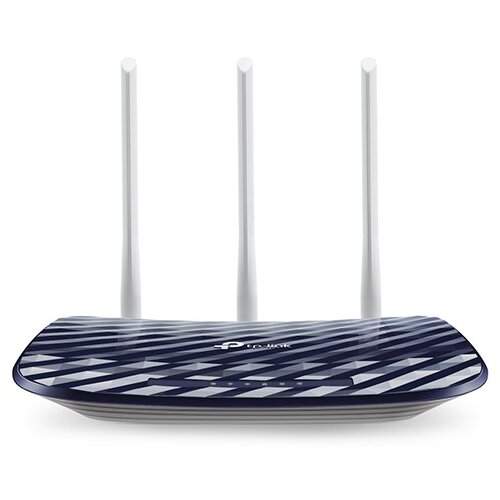

Tp-link Archer C20 AC750 V4.0 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) Navy

Design
Product type: Tabletop router
Product colour: Navy

Power
Power over Ethernet (PoE): Yes
Output voltage: 9 V
Power source type: DC

Security
IP address filtering: Yes
DMZ support: Yes
Firewall: Yes
DoS attack prevention: Yes
Portbased Network Access Control (PNAC): Yes
Guest access: Yes
Security algorithms: WPA, WPA2PSK, 64bit AES, WPA2, 128bit AES
Filtering: Yes
MAC address filtering: Yes

Operational conditions
Operating temperature (TT): 0 40 C
Storage temperature (TT): 40 70 C
Storage relative humidity (HH): 5 90%
Operating relative humidity (HH): 10 90%

Management features
WPS push button: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes

Weight & dimensions
Height: 35 mm
Width: 230 mm
Depth: 14 mm

Network
Ethernet LAN: Yes
Ethernet LAN interface type: Fast Ethernet
Ethernet LAN data rates: 100, 10
Networking standards: IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11b, IEEE 802.11ac

System requirements
Windows operating systems supported: Yes
Mac compatibility: Yes
Linux operating systems supported: Yes
Browser supported: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0

Packaging data
Package depth: 223 mm
Package width: 285 mm
Package height: 91 mm

Packaging content
Quick installation guide: Yes
Cables included: LAN (RJ45)

Wireless LAN features
WLAN data transfer rate (first band): 300 Mbit/s
WiFi band: Dualband (2.4 GHz / 5 GHz)
WLAN data transfer rate (second band): 433 Mbit/s
WiFi standards: 802.11g, 802.11b, WiFi 5 (802.11ac), WiFi 4 (802.11n), 802.11a
Top WiFi standard: WiFi 5 (802.11ac)
WLAN data transfer rate (max): 433 Mbit/s

Protocols
DHCP server: Yes
Universal Plug and Play (UPnP): Yes
DHCP client: Yes
Supported network protocols: IPv4, IPv6

Ports & interfaces
Memory card slot(s): No
USB port: No
DCin jack: Yes
Ethernet LAN (RJ45) ports: 5

Antenna
Detachable antenna(s): No
Antenna design: External
Antennas quantity: 3

WAN connection
SIM card slot: No
3G/4G USB modem compatibility: No
DSL WAN: No
Ethernet WAN: Yes

Logistics data
Harmonized System (HS) code: 85176990

Mobile network
3G: No
4G: No
