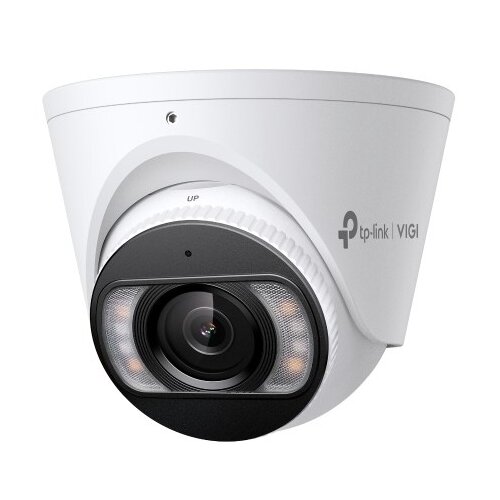

Tp-link VIGI C445 Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Design
Housing material: Metal, Plastic
Mounting type: Ceiling/wall
International Protection (IP) code: IP67
Form factor: Turret
Product colour: White

Power
Power source type: DC
Power consumption (max): 10.1 W

Security
Password protection: Yes
Privacy protection: Yes
IP address filtering: Yes
Digest authentication: Yes

Operational conditions
Storage relative humidity (HH): 0 95%
Operating relative humidity (HH): 0 95%
Operating temperature (TT): 30 60 C
Storage temperature (TT): 40 60 C

Weight & dimensions
Weight: 480 g
Width: 111 mm
Depth: 111 mm
Height: 83.7 mm

Network
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet

Performance
Day/night mode: Yes
Placement supported: Indoor & outdoor
Dynamic range: 120 dB
Infrared (IR) cutoff filter: Yes
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Connectivity technology: Wired

Packaging content
Number of cameras: 1

Audio
Sample rate: 8 kHz
Builtin speaker(s): Yes
SignaltoNoise Ratio (SNR): 52 dB
Builtin microphone: Yes
Bit rate range: 64 64 Kbit/s

Ports & interfaces
Ethernet LAN (RJ45) ports: 1

Camera
Pan range: 0 360
Minimum illumination: 0.005 lx
Camera shutter speed: 1/3 1/10000 s
Camera pan control: Yes
Camera tilt control: Yes
Lens viewing angle, diagonal: 98.7
Lens viewing angle, horizontal: 80.4
Lens viewing angle, vertical: 41.8
Tilt angle range: 0 85
Number of Privacy masking areas: 4

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Sensor type: CMOS

Video
Total megapixels: 4 MP
Video compression formats: H.265, H.264, H.265+, H.264+
Noise reduction technology: 3D noise reduction
Bit rate control: Constant Bit Rate (CBR), Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Smart IR: Yes
Region of Interest (ROI) encoding: Yes
Noise reduction: Yes
Frame rate: 60 fps
Supported graphics resolutions: 2688 x 1520, 2048 x 1280, 2550 x 1440, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 2304 x 1296
Bit rate: 6 Mbps
Maximum resolution: 2688 x 1520 pixels

Night vision
Number of illumination LEDs: 4
LED type: IR
Infrared wavelength: 850 nm
Night vision: Yes
Night vision distance: 30 m

Lens system
Maximum aperture number: 1.6
Observe distance: 33 m
Minimum aperture number: 1.6
Recognize distance: 16 m
Number of lenses: 1
Detect distance: 80 m
Fixed focal length: 4 mm
Identify distance: 8 m
Lens diameter: 4 mm
Focal length range: 4 mm
