Wera 8009 Zyklop Pocket Set 1

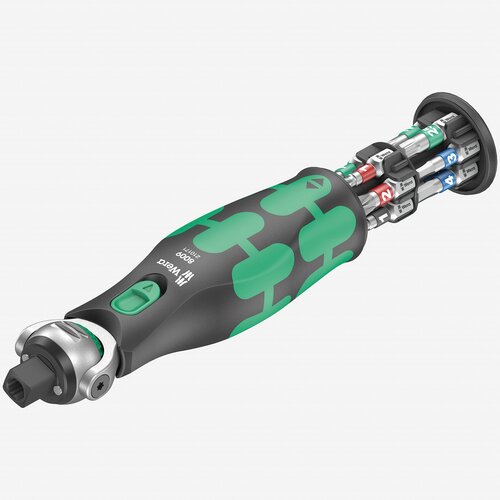

Compact Zyklop ratchet with bit magazine for your pocket.

Combination tool holder
The magnetic direct mount is suitable for both 3/8" sockets and ¼" bits.

With integrated bit magazine
A captive, freely swivelling bit magazine for 12 bits (1/4", 25 mm length) is integrated in the handle of the compact Zyklop ratchet.

Swivelling bit magazine
The swivelling bit magazine makes it easy to remove the bits in almost any situation and is captive. The bits are safely stored.

Freely swivelling ratchet head
The ratchet head can be freely swivelled and locked in any fixed position by means of the slide switch on both sides. Problemfree working with large hand clearance is possible even in very narrow or difficulttoreach installation situations.

Fixing the ratchet head
The ratchet head can be fixed in the defined positions 0° as well as 15° and 90° to the right and left by means of the slide switch mounted on both sides.

Small return angle
The fine toothing with 72 teeth enables a small return angle of only 5° for work in confined bolting situations.

Switchable
The Zyklop Pocket Ratchet can be quickly and easily switched for right/lefthand rotation in any position via the knurled wheel.

Features:

• Compact Zyklop ratchet with integrated bit magazine.
• The magnetic direct mount turns the 3/8" ratchet into a bit ratchet screwdriver with 1/4" bit mount at the same time
• Freely swivelling ratchet head with 5 defined fixings
• Finetooth reversible ratchet (72 teeth) for a low return angle of only 5°.
• Captive and swivelling bit magazine for easy removal and safe storage of bits
• Very fast tool change thanks to nonlocking holder
• Wide range of applications thanks to 12 bits integrated in the handle
• The robust ratchet mechanism ensures sufficient torques
• Ideal combination of a Zyklop ratchet with a 12piece screwdriver set
• Dimensions: 165 x 70 x 35 mm
• Weight: 255 g

Set contents 13 pieces:

• 1x 8009 Zyklop Pocket, 3/8" x 1/4" x 133 mm.
• Colour coded bits:
  • 1x PH1 x 25 mm
  • 1x PH2 x 25 mm
  • 1x PZ1 x 25 mm
  • 1x PZ2 x 25 mm
  • 1x each TX10, TX15, TX20, TX25 (25 mm)
  • 1x hexagon socket each 3, 4, 5, 6 x 25mm
