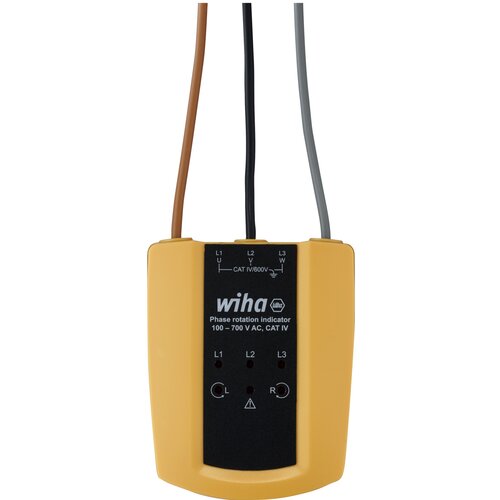

Wiha Drehfeldrichtungsanzeiger 100 - 700 V AC, CAT IV

Features:

• Direction of rotation indicator with integrated phase display
• LED display for direction of rotation and voltagecarrying phases
• Test probes for flexible application
• No batteries required, uses mains voltage
• Rotating field indicator LED: L, R
• Phase display: LED L1, L2, L3
• Warning: LED Warning
• Safety categories CAT III (up to 1,000 V) and CAT IV (up to 600 V)
• Dimensions: 93 x 75 x 31 mm
• Measurement category: CAT IV 600 V
• According to: IEC/EN 610101, IEC/EN 615777, IEC/EN 611010031
• Degree of protection: IP40
• Voltage range phase against phase: 100 V 700 V
• Maximum input voltage per phase (Lx) versus neutral (N) (Volt): 400 V
• Current consumption: 3.5 mA
• Degree of contamination: 2
• Test leads: 3
• Surge protection: 600 V
• Total length: 93 mm
• Application: To determine the direction of rotation and to check the phases
