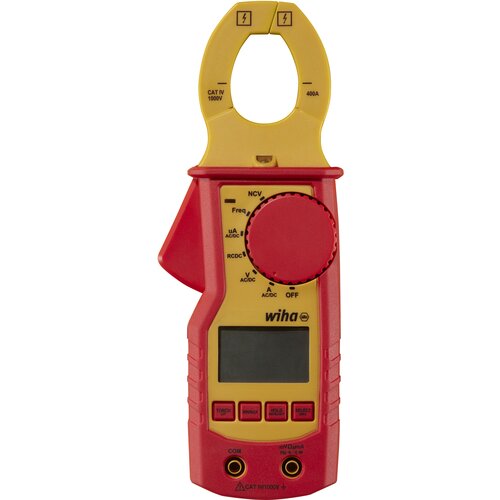

Wiha Measuring Clamp up to 1.000V

The current measuring clamp from Wiha is a practical tool for working on electrical installations. It can measure current with the clamp fork without breaking the circuit. It can perform various measurements with the test probes: AC and DC voltage, resistance, frequency and capacitance. It can also do continuity tests and diode tests. It has a large LCD display with backlight and data hold function for the measurement results. It has a beep for continuity testing. The current clamp offers disturbancefree RMS values for safe testing with the LPF function and the True RMS function. It has a measurement category of CAT IV up to 1,000 V for work on lowvoltage sources.

Features:

• One measuring device for all relevant electrician tests.
• Simple onehand test without interrupting the circuit
• Measurement of live wires without open contacts
• Large LCD display with backlight
• Integrated torch function
• LPF and TRUERMS measurement for precise test results
• IP40 CAT IV 1.000 V

Technical data:

• Voltage V DC min max: 0 1500
• Voltage V AC min max: 0 1000
• Current A DC: 400
• Current A AC: 400
• Resistance (MΩ): 40 MΩ
• Integrated flashlightYes
• Frequency (MHz): 5 MHz
• True RMS
• Backlight
• Data HOLD
• Min measurement
• Max measurement
• Measurement category: CAT IV 1,000 V
• Noncontact voltage test
• Incl. batteries (2x AAA)
• AVG measurement
• Continuity test: < 30 Ω
• Total length: 220 mm
• Capacitance (μF): 100 μF
