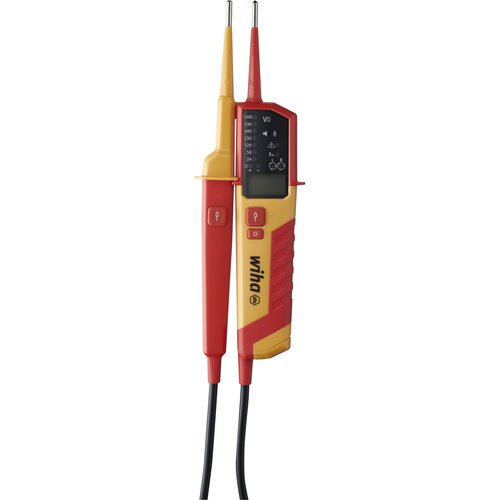

Wiha Voltage and Continuity Tester eMobility

Freedom from voltage is the basis for safe working. With the voltage and continuity tester from Wiha, you can check this quickly and easily and prepare yourself for the versatile challenges in your everyday working life. The voltage tester covers a wide measuring range from 0.5V to 1,000 V AC or 1,500 V DC. It also has functions for continuity testing, optical rotating field testing, singlepole testing and automatic polarity detection. In addition, you can measure resistances and frequencies with the voltage tester.

Features:

• Noncontact voltage testing
• Voltage AC min max: 0.5 1000 V
• Voltage DC min max: 0.5 1500 V
• Power supply: 2x AAA batteries (included)
• Pollution degree: 2
• ATEX approval: No
• Emobility suitable: No
• Photovoltaiccompatible:
• Integrated torch
• FI test
• Display: LED and LCD display
• Rotary field display: LED L, R
• Continuity test: LED and acoustic tone
• Operating temperature: 15° 50°C
• Storage temperature: 20°C 60°C
• Altitude above sea level: 2000 m
• Singlepole phase test: 100 1.00 V AC (40 70 Hz)
• Rotary field test: 170 7,000 V phase to phase AC 4070 Hz
• Continuity test: Measuring range 0 500 kΩ + 50%
• LED ELV display: > 50 V AC, > 120 V DC
• LCD range: 0.5 to 1.000 V AC, 0.5 to 1.500 V DC
• LCD resolution: 0.1 V (< 10 V) and 1 V (> 10 V)
• LCD accuracy: +/ 3 %, +/ 3 digit (< 10 V) and +/ 3 %, +/ 5 digit (> 10 V)
• LCD overflow display: OL
• Own time: < 0.5 s LED and < 1 s LCD
• Safety current: Is < 3.5 mA (At 1.000 V)
• Measuring mode: 30 s ON (operating time), 240 s OFF (recovery time)
• Battery consumption: approx, 80 mA
• Humidity: max 85 % RH
• Acoustic signal
• Total length: 282 mm
• Dimensions: 282 x 110 x 50 mm
• Protection class: IP 64
• Tested according to IEC 612433:2014, CAT III 1,000V / CAT IV 600V
