APUTURE F10 Fresnel Mount

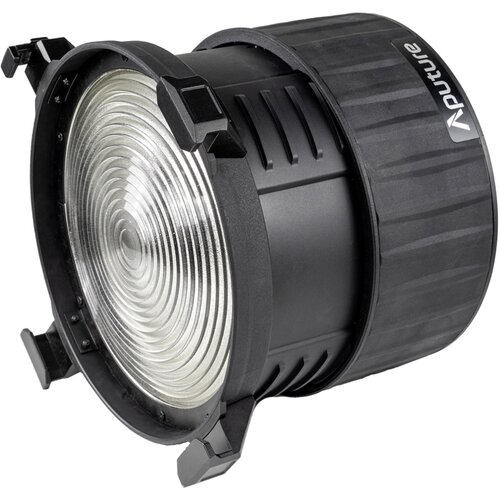

Aputure F10 Fresnel

Features:

• Up to 29300 lux @ 3 m with the Aputure LS 600d Pro (15 spot)
• 1545 variable beam angle
• 10" (250 mm) glass Fresnel lenses: the surface of the front Fresnel is similar to traditional large Fresnel lenses such as Tungsten 5Ks, the larger lens multiplies the light output by up to ten times
• Dual optical system for maximum light output: a rear optical element optimises the light angle of a flat LED source for the front Fresnel lens
• Seamless, ergonomic focusing: the F10 Fresnel uses the same mechanism as the Aputure Fresnel 2X for smooth, precise spot/flood control
• Heatresistant design: constructed from durable, heatresistant material, the F10 Fresnel can be used with high output luminaires such as the LS 600d Pro without hesitation
• Robust carrying bag: the scope of delivery of the F10 Fresnel includes a specially designed padded carrying bag
• Compatible with Bowens Mount LED lights such as the Aputure LS 600d Pro, 300d II, 300x, 120d II etc.
• Compatible with F10 Barn Doors through the metal ring at the front

Tech Specs:

• Diameter Fresnel lens: 250 mm
• Diameter accessory slot: 332.88 mm
• Accessory bayonet: Bowens Mount
• Mae: Collapsed (Flood 45) 346 x 340.46 x 172.48 mm, Extended (Spot 15) 346 x 340.46 x 250.35 mm
• Dimensions carrying bag: 390 x 190 mm
• Weight: F10 Fresnel 3850 g, carrying bag 1800 g

Photometrics:

• F10 Fresnel (Flood 45): 89200 lux @ 1 m, 11440 lux @ 3 m, 4260 lux @ 5 m
• F10 Fresnel (Spot 15): 224200 lux @ 1 m, 29300 lux @ 3 m, 10580 lux @ 5 m

Items delivered:

• 1x F10 Fresnel
• 1x carrying bag
