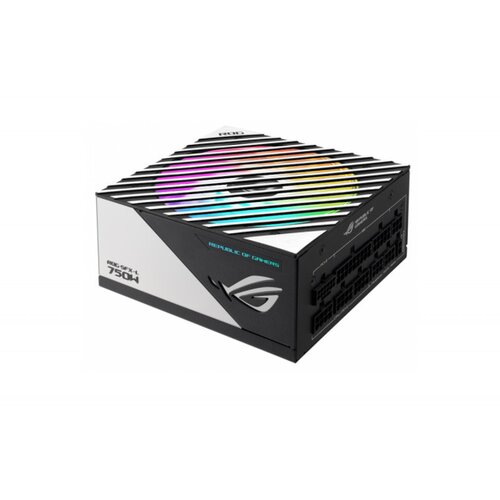

Asus ROG Loki SFX-L 750W Platinum power supply unit 20+4 pin ATX Black, Silver
Technical details Sustainability certificates: RoHS Compliance certificates: RoHS Design Illumination: Yes Fan diameter: 12 cm Product colour: Silver, Black Number of fans: 1 fan(s) Power Combined power (+3.3V): 110 W Max output current (+12V): 62.5 A Max output current (+5Vsb): 2.5 A Max output current (+3.3V): 20 A Combined power (+5V): 110 W Combined power (+12V): 750 W Combined power (12V): 9.6 W Combined power (+5Vsb): 12.5 W Total power: 750 W Max output current (+5V): 20 A AC input volta
Brend:Asus
- Na zalihama

Asus ROG Loki SFX-L 750W Platinum power supply unit 20+4 pin ATX Black, Silver
Trenutno najbolja ponuda:
229,90 €u Tia mobiteli
Slični proizvodi iz Napajanja
Opis i karakteristike
Technical details
Sustainability certificates: RoHS
Compliance certificates: RoHS
Design
Illumination: Yes
Fan diameter: 12 cm
Product colour: Silver, Black
Number of fans: 1 fan(s)
Power
Combined power (+3.3V): 110 W
Max output current (+12V): 62.5 A
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 20 A
Combined power (+5V): 110 W
Combined power (+12V): 750 W
Combined power (12V): 9.6 W
Combined power (+5Vsb): 12.5 W
Total power: 750 W
Max output current (+5V): 20 A
AC input voltage: 100 240 V
Max output current (12V): 0.8 A
Weight & dimensions
Height: 63.5 mm
Width: 125 mm
Weight: 1.81 kg
Depth: 125 mm
Certification: OPP/OVP/UVP/SCP/OCP/OTP
Performance
Purpose: PC
Supported motherboard form factors: ATX
Power supply unit (PSU) form factor: SFX
80 PLUS certification: 80 PLUS Platinum
Silent mode: Yes
Packaging data
Package weight: 2.5 kg
Package width: 285 mm
Package depth: 190 mm
Package type: Box
Package height: 100 mm
Ports & interfaces
PCI Express power connectors (16pin): 1
PCI Express power connectors (8pin): 3
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4pin): 4
Number of SATA power connectors: 6
Cabling type: FullyModular
CPU power connector (4+4 pin): Yes
Sustainability certificates: RoHS
Compliance certificates: RoHS
Design
Illumination: Yes
Fan diameter: 12 cm
Product colour: Silver, Black
Number of fans: 1 fan(s)
Power
Combined power (+3.3V): 110 W
Max output current (+12V): 62.5 A
Max output current (+5Vsb): 2.5 A
Max output current (+3.3V): 20 A
Combined power (+5V): 110 W
Combined power (+12V): 750 W
Combined power (12V): 9.6 W
Combined power (+5Vsb): 12.5 W
Total power: 750 W
Max output current (+5V): 20 A
AC input voltage: 100 240 V
Max output current (12V): 0.8 A
Weight & dimensions
Height: 63.5 mm
Width: 125 mm
Weight: 1.81 kg
Depth: 125 mm
Certification: OPP/OVP/UVP/SCP/OCP/OTP
Performance
Purpose: PC
Supported motherboard form factors: ATX
Power supply unit (PSU) form factor: SFX
80 PLUS certification: 80 PLUS Platinum
Silent mode: Yes
Packaging data
Package weight: 2.5 kg
Package width: 285 mm
Package depth: 190 mm
Package type: Box
Package height: 100 mm
Ports & interfaces
PCI Express power connectors (16pin): 1
PCI Express power connectors (8pin): 3
Motherboard power connector: 20+4 pin ATX
Peripheral (Molex) power connectors (4pin): 4
Number of SATA power connectors: 6
Cabling type: FullyModular
CPU power connector (4+4 pin): Yes
Učinak
Snaga (u W)
750
Tip napajanja
Modularno
Obilk napajanja
ATX
Napajanje
Ulazni napon izmjenične struje (V)
115 - 230
Ulazna frekvencija izmjenične struje (Hz)
50 - 60
