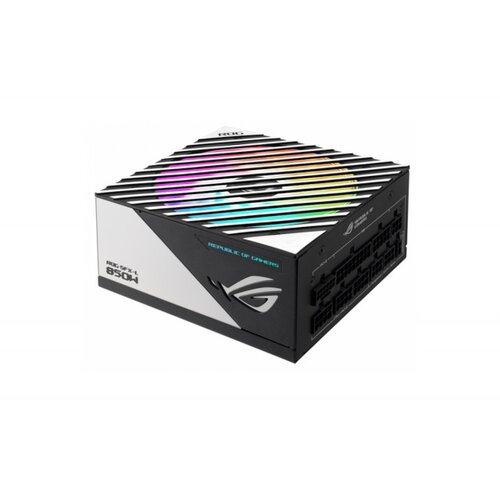

Asus Napajanje ROG LOKI SFX-L 850W Platinum ROG-LOKI-850P-SFX-L-GAMING

Technical details
Compliance certificates: RoHS
Sustainability certificates: RoHS

Design
Product colour: Silver, Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Illumination: Yes

Power
Combined power (+5V): 110 W
Total power: 850 W
Max output current (12V): 0.8 A
Max output current (+5Vsb): 2.5 A
Max output current (+12V): 70.8 A
Max output current (+3.3V): 20 A
Combined power (12V): 9.6 W
AC input voltage: 100 240 V
Combined power (+5Vsb): 12.5 W
Combined power (+3.3V): 110 W
Combined power (+12V): 850 W
Max output current (+5V): 20 A

Weight & dimensions
Weight: 1.81 kg
Width: 125 mm
Height: 63.5 mm
Depth: 125 mm
Certification: OPP/OVP/UVP/SCP/OCP/OTP

Performance
Power supply unit (PSU) form factor: SFX
80 PLUS certification: 80 PLUS Platinum
Silent mode: Yes
Purpose: PC
Supported motherboard form factors: ATX

Packaging data
Package weight: 2.5 kg
Package type: Box
Package width: 285 mm
Package height: 100 mm
Package depth: 190 mm

Ports & interfaces
Motherboard power connector: 24pin ATX
Cabling type: FullyModular
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4pin): 4
CPU power connector (4+4 pin): Yes
PCI Express power connectors (8pin): 3
PCI Express power connectors (16pin): 1
