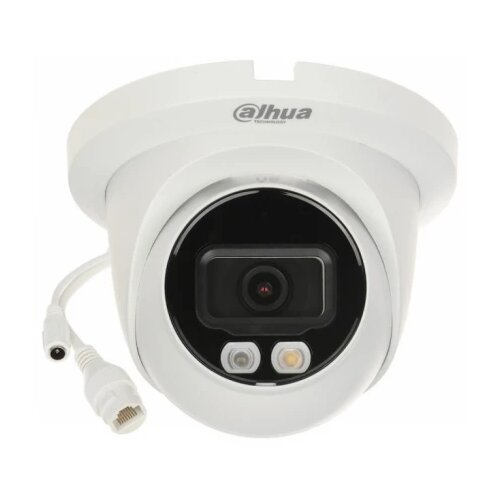

Dahua IP CAMERA IPC-HDW2549TM-S-IL-0280B

Design
Mounting type: Ceiling
Product colour: White
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Form factor: Dome

Power
DC output voltage: 12
Power consumption (Power over Ethernet (PoE)): 5.4 W
Power consumption (max): 4.6 W
Power source type: DC, PoE

Operational conditions
Operating temperature (TT): 40 60 C
Storage temperature (TT): 40 60 C
Operating relative humidity (HH): 0 95%

Management features
Web browser: Yes
Webbased management: Yes

Weight & dimensions
Diameter: 12.2 cm
Weight: 480 g
Height: 99.1 mm

Network
Number of users: 20 user(s)
Bluetooth: No
Ethernet interface type: Fast Ethernet
WiFi: No
Networking standards: IEEE 802.3af
Quality of Service (QoS) support: Yes

System requirements
Mobile operating systems supported: Android, iOS
Certification: LVD: EN623681; EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B 20230410

Performance
Placement supported: External / Internal
SignaltoNoise Ratio (SNR): 56 dB
Connectivity technology: Wired
Wide Dynamic Range (WDR): 120 dB
Type: IP security camera

Packaging content
Number of cameras: 1

Audio
Audio formats supported: G.711Mu, G.726, G.711a, PCM
Builtin microphone: Yes

Storage
Builtin HDD: No
ROM capacity: 128 MB
Internal memory: 256 MB

Camera
Pan range: 0 360
White balance: Manual, Auto, Street lamp, Outdoor, Natural
Lens viewing angle, vertical: 58
Adjustment shutter speed: Auto/Manual
Lens viewing angle, horizontal: 111
Lens viewing angle, diagonal: 132
Camera shutter speed: 1/3 1/100000 s
Tilt angle range: 0 78
Minimum illumination: 0.007 lx

Image sensor
Sensor type: CMOS
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of sensors: 1

Video
Video compression formats: H.265+, H.264B, H.264, H.265, H.264+, MJPEG, H.264H
Mirror function: Yes
Video streaming: Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30 fps
Noise reduction technology: 3D noise reduction
Noise reduction: Yes
Total megapixels: 5 MP
Gain control type: Auto/Manual
Supported graphics resolutions: 640 x 480 (VGA), 1280 x 720, 2880 x 1620, 2960 x 1668, 352 x 240, 2304 x 1296, 704 x 576, 1280 x 960, 352 x 288, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 704 x 480, 2688 x 1520
Bit rate: H.264: 32 kbps8192 kbps H.265: 12 kbps8192 kbps
Back Light Compensation (BLC): Yes
Maximum resolution: 2960 x 1668 px

Night vision
Number of illumination LEDs: 2
Night vision: Yes
Night vision distance: 30 m
LED type: IR / White light LED

Lens system
Focal length range: 2.8 mm
Maximum aperture number: 1.6
Closest focusing distance: 1.1 m
Number of lenses: 1
Lens type: Fixed focal length lens
