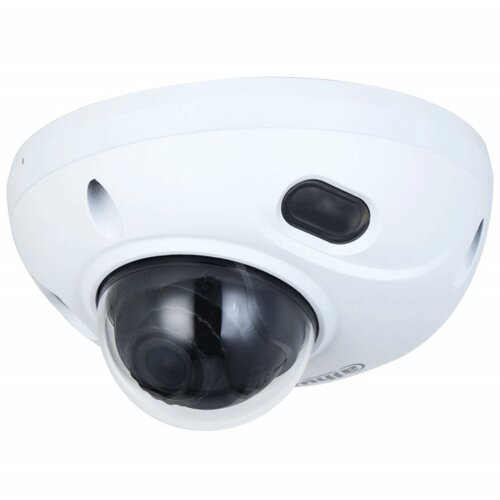

Dahua KAMERA IP DAHUA IPC-HDBW3541F-AS-0280B-S2

Design
Mounting type: Ceiling
Degree of protection IK: IK10
Form factor: Dome
Housing material: Metal, Plastic
International Protection (IP) code: IP67
Product colour: White

Power
Power consumption (Power over Ethernet (PoE)): 7.2 W
Power consumption (typical): 3.8 W
DC output voltage: 12, 48
Power consumption (max): 5.9 W
Power source type: DC, PoE

Operational conditions
Operating temperature (TT): 40 60 C
Storage temperature (TT): 40 60 C
Operating relative humidity (HH): 0 95%

Management features
Web browser: Yes
Webbased management: Yes

Weight & dimensions
Width: 111 mm
Height: 64.8 mm
Depth: 111 mm
Weight: 423 g

Network
Bluetooth: No
Ethernet interface type: 10 Megabit Ethernet, 100 Megabit Ethernet
4G LTE: N
WiFi: No
Networking standards: IEEE 802.1x, IEEE 802.3af

System requirements
Mobile operating systems supported: Android, iOS

Performance
Placement supported: External / Internal
Wide Dynamic Range (WDR): 120 dB
SignaltoNoise Ratio (SNR): 56 dB
Type: IP security camera
Connectivity technology: Wired

Packaging content
Number of cameras: 1

Audio
Twoway talk: Yes
Audio codecs: G.711a / G.711Mu / G.723 / G.726 / PCM
Builtin loudspeaker: Yes
Builtin microphone: Yes

Storage
ROM capacity: 128 MB
RAM capacity: 512 MB

Ports & interfaces
Compatible memory cards: MicroSD (TransFlash), MicroSDXC, MicroSDHC
Alarm input/output: N
RCA input: 1
Audio RCA outputs: 1
Ethernet LAN (RJ45) ports: 1
Number of memory card slots: 1
Maximum memory card size: 256 GB

Camera
Viewing angle, diagonal: 132
Vertical rotation angle: 20 70
Minimum illumination: 0.005 lx
Motion detection : Yes
People detection : Yes
Horizontal rotation angle: 0 355
Lens viewing angle, vertical: 58
Adjustment shutter speed: Auto/Manual
Camera shutter speed: 1/3 1/100000 s

Image sensor
Number of sensors: 1
Progressive scan: Yes
Sensor type: HD CMOS
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")

Video
Bit rate: 3 Kbp 8192Kbps
Video compression formats: MJPEG, H.265+, AI Coding, H.264+, H.264H, H.264B, H.264, H.265
Total megapixels: 5 MP
Frame rate: 25 / 30 fps
Video streaming: Yes
Noise reduction technology: 3D noise reduction
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Supported graphics resolutions: 352 x 240, 2304 x 1296, 640 x 480 (VGA), 2560 x 1440, 704 x 576, 1280 x 960, 1280 x 720, 2880 x 1620, 2960 x 1668, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 704 x 480, 2688 x 1520, 352 x 288
Maximum resolution: 2960 x 1668 px

Night vision
LED type: IR
Number of illumination LEDs: 2
Night vision distance: 30 m
Night vision: Yes

Lens system
Maximum aperture number: 1.6
Detect distance (wide): 63.6 m
Lens type: Fixed focal length lens
Number of lenses: 1
Recognize distance (wide): 12.7 m
Identify distance (wide): 6.4 m
Closest focusing distance: 0.9 m
Focal length range: 2.8 mm
Aperture type: Permanent
