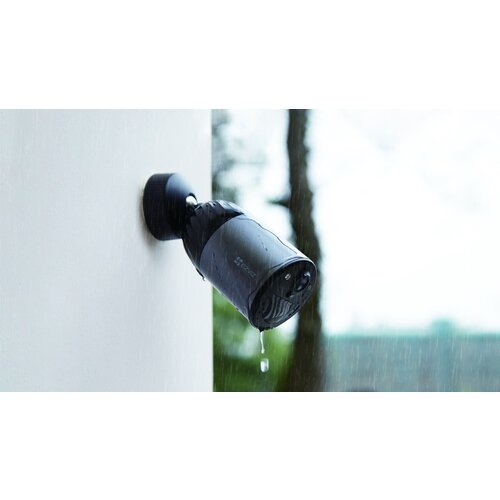

Ezviz IP CAMERA CS-BC1C

Technical details
Lens mount interface: M12

Design
Mounting type: Ceiling/wall
International Protection (IP) code: IP65
Protection features: Water resistant
Product colour: Black
Form factor: Bullet

Power
Rechargeable battery: Yes
Battery capacity: 10400 mAh
DC output current: 2 A
DC output voltage: 5
Power source type: Battery, DC
Power consumption (max): 10 W

Security
Password protection: Yes
Digital watermark: Yes
Intelligent Video Surveillance (IVS) system features: Vehicle detection, Human detection
Antiflicker: Yes
Heartbeat: Yes
Video motion detection: Yes
Security algorithms: WPA2PSK, WPAPSK, WPA3Personal

Operational conditions
Operating temperature (TT): 20 50 C
Operating relative humidity (HH): 0 95%

Weight & dimensions
Height: 63 mm
Width: 63 mm
Length: 149.3 mm
Weight: 348 g

Network
WiFi: Yes
Works with the Google Assistant: Yes
Channel bandwidth: 20 MHz
WiFi standards: WiFi 6 (802.11ax), 802.11g, 802.11b, WiFi 4 (802.11n)
Ethernet LAN: No
Works with Amazon Alexa: Yes
Bluetooth: Yes
Frequency band: 2.4 2.4835 GHz

Performance
Infrared (IR) cutoff filter: Yes
Placement supported: Outdoor
Day/night mode: Yes
Type: IP security camera
Builtin light: Yes
Connectivity technology: Wireless

Packaging data
Package weight: 671 g
Package height: 186 mm
Package depth: 103 mm
Package width: 103 mm

Packaging content
Number of cameras: 1
Drilling template included: Yes
Mounting brackets included: Yes
Screws included: Yes
Cables included: USB
Quick start guide: Yes
Mounting kit: Yes

Audio
Builtin speaker(s): Yes
Audio system: 2way
Builtin microphone: Yes

Storage
Builtin HDD: No
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
Cloud services supported: EZVIZ Cloud
Card reader integrated: Yes

Ports & interfaces
DCin jack: Yes

Camera
Lens viewing angle, horizontal: 113
Lens viewing angle, vertical: 60
Adjustment shutter speed: Auto
Lens viewing angle, diagonal: 135

Image sensor
Progressive scan: Yes
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Number of sensors: 1
Sensor type: CMOS

Video
Supported video modes: 1440p, 2160p, 1080p
Frame rate: 15 fps
Video recording: Yes
Total megapixels: 8 MP
Maximum resolution: 3840 x 2160 pixels
Video formats supported: H.265, H.264
Noise reduction technology: 3D noise reduction
Bit rate: 4 Mbps
Video compression formats: H.265, H.264
Supported graphics resolutions: 3840 x 2160
Noise reduction: Yes
Video streaming: Yes

Night vision
LED type: IR/White
Colour night vision distance: 15 m
Night vision distance: 15 m
Night vision: Yes

Lens system
Maximum aperture number: 1.6
Number of lenses: 1
Fixed focal length: 2.8 mm

Sustainability
Compliance certificates: REACH, UL, RoHS, CE, WEEE
