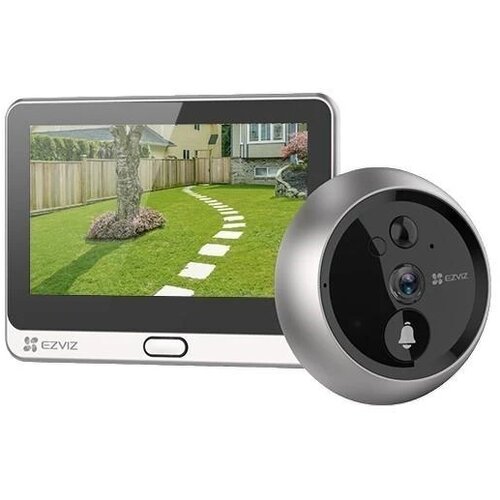

Ezviz WIRELESS WIFI DOORBELL WITH VIEWFINDER DP2C CS-DP2C

Technical details
Connectivity technology: Wireless
Door thickness: 35 105 mm
Colour: Yes
Wide Dynamic Range (WDR): DWDR
Video codecs: H.264 / H.265

Design
Product colour: White
Proper use: Outdoor
International Protection (IP) code: IP65
Smartphone support: Yes
Weatherproof: Yes

Power
Battery capacity: 4.6 Ah
Outdoor unit power type: DC
Input voltage: 5 V
Power consumption (max): 2.2 W

Security
Alarm clock: Yes
Motion detection function: Yes
People detection : No

Operational conditions
Operating temperature (TT): 10 45 C
Operating relative humidity (HH): 0 95%

Management features
Webbased management: Yes

Weight & dimensions
Weight: 320 g
Depth (with base): 2.7 cm
Viewable screen width (W): 11.6 cm
Height: 71 mm
Width: 71 mm
Viewable screen height (H): 8.6 cm
Depth: 48.3 mm

Network
Wireless transmission security: WPA, WPAPSK, WPA2PSK, WPA2
WiFi standards: IEEE 802.11g, IEEE 802.11b, IEEE 802.11n
WiFi frequency: 2.4 GHz
WiFi: Yes

Audio
Builtin microphone: Yes
Twoway talk: Yes
Builtin loudspeaker: Yes

Storage
Maximum memory card size: 256 GB
Compatible memory cards: MicroSD (TransFlash)
Card reader slot: 1

Camera
Fixed focal length: 2 mm
Optical sensor size: 25.4 / 1.3 mm (1 / 1.3")
Sensor type: CMOS
Maximum frame rate: 15 fps
Supported video modes: 1080p
Maximum video resolution: 1920 x 1080 pixels
Lens viewing angle, diagonal: 155
Maximum aperture number: 2.2

Night vision
Night vision distance: 5 m
Night vision: Yes
LED type: IR

Sensors
PIR sensor sensitivity: Adjustable
Detection distance: 6 m
Integrated PIR sensor: Yes

Viewfinder
Viewfinder screen size: 4.3"
Touchscreen: Yes
Supported peephole diameter: 16.5 50 mm
