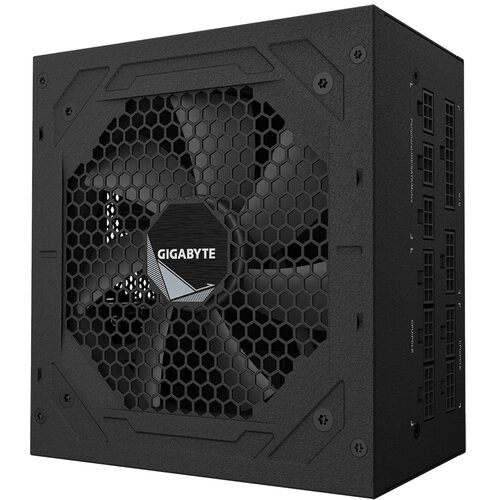

Gigabyte power supply GP-UD850GM PG5W 850W 80+ Gold

Technical details
Sustainability certificates: RoHS, CE, CCC, Federal Communications Commission (FCC)
Warranty period: 5 year(s)

Design
Illumination: No
Fan location: Top
Product colour: White
Cooling type: Active
Number of fans: 1 fan(s)
Fan diameter: 12 cm

Power
Input current: 12 6 A
Combined power (+12V): 850 W
Combined power (+5V): 105 W
Power Factor Correction (PFC) type: Active
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Overheating, Over power
Max output current (12V): 0.3 A
AC input voltage: 100 240 V
Combined power (+5Vsb): 15 W
Total power: 850 W
Combined power (12V): 3.6 W
Combined power (+3.3V): 105 W
Maximum input current (@220V): 12 A
Max output current (+3.3V): 20 A
Efficiency: 90%
Maximum input current (@110V): 6 A
Max output current (+5Vsb): 3 A
AC input frequency: 50 60 Hz
Max output current (+5V): 20 A
Hold time: 16 ms
Max output current (+12V): 70.8 A

Weight & dimensions
Depth: 140 mm
Width: 150 mm
Height: 85 mm

Performance
Mean time between failures (MTBF): 100000 h
Noise level: 40 dB
Purpose: PC
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold

Packaging data
Package type: Box

Packaging content
Cable tie(s) included: Yes
Cables included: CPU, PATA, Peripheral (Molex), SATA

Ports & interfaces
Number of PATA power connectors: 3
ATX power connector (20+4 pin): Yes
SATA power cable length: 150, 600
Peripheral (Molex) power cable length: 200, 600
Motherboard power cable length: 61 cm
Cabling type: FullyModular
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power connectors (4pin): 2
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 70 cm
Number of SATA power connectors: 8
Motherboard power connector: 20+4 pin ATX
PCI Express connector: Yes
PCI Express power connectors (16pin): 1
