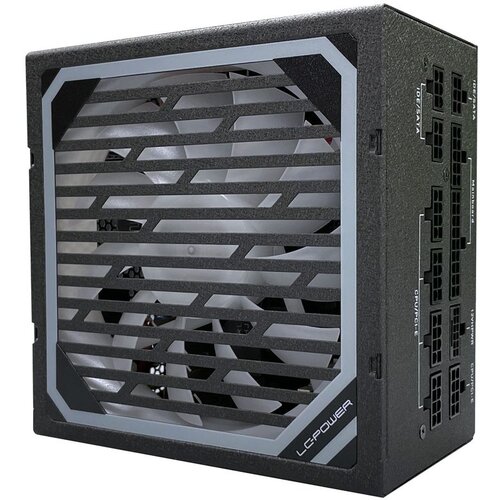

LC Power LC6750M V3.0

The LC6750M V3.0 is an 80 PLUS GOLD certified, fully modular ATX power supply that ensures high performance and stability in your system.

Features:

• ATX form factor
• 750 W
• 135 mm fan
• Fully modular cable management
• Black sleeved cables
• 80 PLUS GOLD certified
• High efficiency of up to 90
• Full range: 100 240 V
• DCtoDC technology
• Powerful +12 V cable (62.4 A)
• 4x PCI Express 6+2pin
• 1x PCIExpress 5.0 12+4pin

Technical data:

• Power supply series: Super Silent Modular
• ATX standard: ATX V3.0
• Connections:
  • 20+4pin motherboard: 1x 650 mm
  • 4+4pin motherboard 12 V (8pin EPS): 2x 650 mm
  • 4pin motherboard 12 V: 1x 800 mm
  • PCIExpress 5.0 12+4pin: 1x 600 mm
  • PCIExpress 6+2Pin: 4x total (2x 675 mm / 2x 750 mm)
  • SATA: 10x total (3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm)
  • PATA: 5x total (1x 350 mm / 2x 500 mm/ 1x 650 mm / 1x 800 mm)
  • Connectivity options SATA & PATA:
    • 10x SATA & 0x PATA
    • 8x SATA & 3x PATA
    • 4x SATA & 5x PATA
• Fan: 135 mm
• PFC: active
• Dimensions power supply: 86 x 150 x 151 mm
• Dimensions Packaging: 115 x 275 x 200 mm
• Weight: about 2.52
• Power output: 750.0 W
• +3.3 V: 20.0 A
• +5.0 V: 20.0 A
• Max combined: 100.0 W
• +12.0 V: 62.4 A
• Max combined: 748.8 W
• 80 PLUS GOLD
• Efficiency: up to 90%
• Temperaturedependent control for case fans
• Safety circuits:
  • OVP (surge protection)
  • OCP (overcurrent protection)
  • OPP (overperformance protection)
  • SCP (short circuit protection)
  • EIA (undervoltage protection)
• Full range (100.0 V / 220.0 V)
• Colour: black
