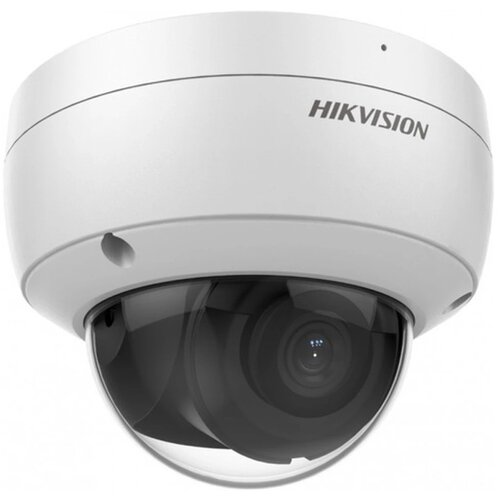

Hikvision AcuSense Dome IR DS-2CD2186G2-ISU(2.8MM)(C) 8MP

Design
IK code: IK10
Mounting type: Ceiling/wall
Product colour: White
International Protection (IP) code: IP67
Protection features: Water resistant, Vandal proof, Dust resistant
Form factor: Dome

Power
Power consumption (Power over Ethernet (PoE)): 7.5 W
DC output voltage: 12
DC output current: 0.5 A
Power source type: DC, PoE
Power consumption (max): 6 W

Security
Active tampering alarm: Yes
Antiflicker: Yes
Heartbeat: Yes
Mirror: Yes
Intelligent Video Surveillance (IVS) system features: Face detection, Scene change
Video motion detection: Yes
HTTPS encryption: Yes
IP address filtering: Yes
Password protection: Yes
Alert notification type: Email

Operational conditions
Operating temperature (TT): 30 60 C
Storage temperature (TT): 30 60 C
Storage relative humidity (HH): 0 95%
Operating relative humidity (HH): 0 95%

Management features
Web browser: Yes
Behavior analysis: Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Reset button: Yes

Weight & dimensions
Diameter: 12.1 cm
Package weight: 850 g
Package depth: 150 mm
Package width: 150 mm
Weight: 590 g
Length: 92.2 mm
Package height: 141 mm

Network
Number of users: 32 user(s)
Ethernet LAN: Yes
Networking standards: IEEE 802.3af
Ethernet interface type: Fast Ethernet
WiFi: Yes
Bluetooth: No

Performance
Wide Dynamic Range (WDR): Yes
Infrared (IR) cutoff filter: Yes
Languages support: Multi
Number of languages: 33
Day/night mode: Yes
Alarm input/output: Yes
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Type: IP security camera

Packaging content
Number of cameras: 1

Audio
Voice codecs: G.711ulaw, G.711alaw, G.722.1, MP2L2, PCM, G.726, AAC
SignaltoNoise Ratio (SNR): 52 dB
Audio input channels: 1 channels
Audio output channels: 1 channels
Builtin microphone: Yes

Storage
Maximum memory card size: 256 GB
Builtin HDD: No
Compatible memory cards: MicroSDHC, MicroSDXC, MicroSD (TransFlash)
Card reader integrated: Yes

Ports & interfaces
Ethernet LAN (RJ45) ports: 1

Camera
Pan range: 0 355
Angle of rotation: 355
Camera shutter speed: 1/3 1/100000 s
Lens viewing angle, diagonal: 131
Lens viewing angle, vertical: 59
Tilt angle range: 0 75

Image sensor
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Number of sensors: 1
Sensor type: CMOS
Progressive scan: Yes

Video
Noise reduction: Yes
Highlight Compensation (HLC): Yes
Total megapixels: 4 MP
Frame rate: 30 fps
Back Light Compensation (BLC): Yes
Bit rate: 32 Kbps 16 Mbps
Video compression formats: MJPEG, H.264, H.265+, H.264+, H.265
Region of Interest (ROI) encoding: Yes
Gain control type: Auto
Privacy masking: Yes
Video streaming: Yes
Image quality adjustment: Sharpness, Contrast, Saturation, Brightness
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Noise reduction technology: 3D noise reduction
Maximum resolution: 3840 x 2160 pixels
Supported graphics resolutions: 640 x 360, 3840 x 2160, 1280 x 720 (HD 720), 2688 x 1520, 640 x 480 (VGA), 1920 x 1200 (WUXGA)

Night vision
LED type: IR
Night vision distance: 30 m
Infrared wavelength: 850 nm
Night vision: Yes

Lens system
Number of lenses: 1
Fixed focal length: 2.8 mm
Maximum aperture number: 1.6
