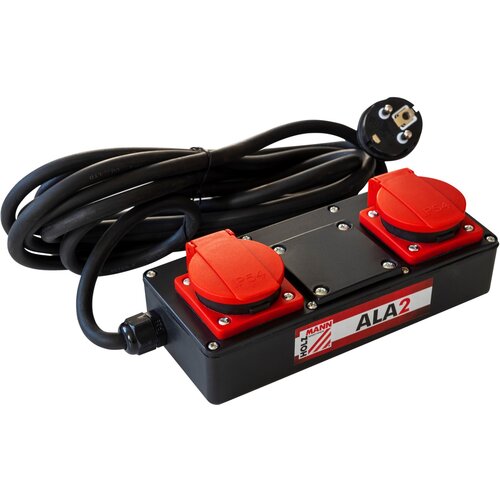

Holzmann ALA2 230V Anlaufautomatik für Absaugung

Holzmann ALA2 230V automatic startup for extraction unit

With the HOLZMANN automatic startup system for extraction units, your extraction unit can be switched on and off automatically once the woodworking machine has been activated (both on a 230 V basis). Connect the woodworking machine and the extraction unit to the automatic startup and you are ready to go. (The prerequisites for the extraction system should be checked beforehand to ensure smooth operation).

Features:

• A processing machine can be connected to the automatic startup system
• After switching on the working machine (master), the second connected machine, e.g. extraction unit (slave), is enabled after 24 seconds
• After switching off the working machine, the second machine is also switched off after 34 seconds
• Automatic startup for 2 230V machines
• Max. Rated power 3680 W (16A)
• Connection cable H07RNF 3G1.5mm² with 4 m length
• Masterslave socket with switchon / switchoff delay of 2 4 seconds

Technical data

• Voltage: 230 V / 50 Hz
• Cable length: 4 m
• Protection class: IP44
• Installation dimensions: 195 x 80 x 65 mm
• Extraction system slave Switching delay: 2 4 s
• Mains input: 230 V
• Weight: approx. 0.93 kg
