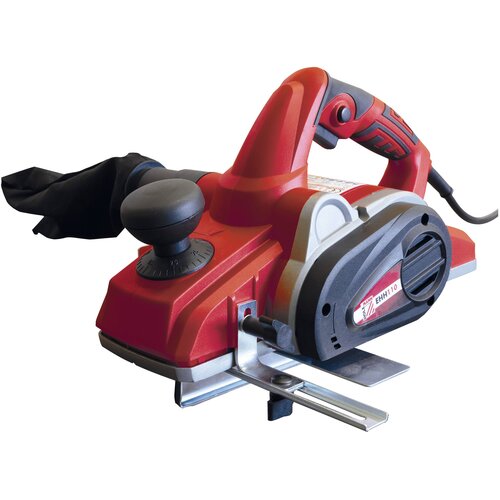

Holzmann Maschinen EHH 110 Electric Planer

The HOLZMANN EHH110_230V is the ideal device for fast planing work that does not require a stationary planing machine. Handy and compact, it is nevertheless very versatile and can be used both as a hand planer and as a dressing planer. With the Vgroove guide on the receiving table, chamfers can be made, with the depth stop included, even steps/ rebate cuts are possible.

Features:

• 110 mm planing width
• Vgroove for easy chamfering
• Receiving table: 104 x 100 mm; Dispensing table: 214 x 100 mm
• Maximum fold depth: 14 mm
• High planing shaft speed enables perfect finish
• Planing depth adjustment via hand wheel 03 mm
• Extensive accessories

Scope of delivery:

• Parallel stop
• Rebate depth stop
• 2x planer blades (110 x 5.7 x 1.2 mm),
• Dust bag
• Extraction reduction diameter 3532 mm
• Frame and plane shaft cover

Technical data:

• Dressing maximum chip removal: 3 mm (110 mm)
• Motor power S1 in W: 1200
• Voltage: 230V / 50Hz
• Protection class: II
• Suction connection diameter: 35 mm
• Planing shaft speed: 16000 rev/min
• Number of knives: 2
• Sound power level: 96 dB(A)
• Sound pressure level: 85 dB(A)
• Vibration handle: 5.71 m/s2
• Net weight: 4.40 kg
• Color: red / black
