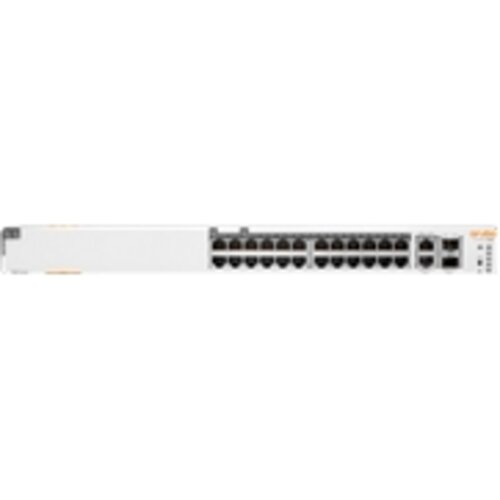

Hp Hewlett Packard Enterprise Aruba Instant On 1960 24G 20p Class4 4p Class6 PoE 2XGT 2SFP+ 370W Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Design
Stackable: Yes
Product colour: White
Form factor: 1U
Rack mounting: Yes

Power
Power supply included: Yes
AC input voltage: 100 240 V
AC input frequency: 50 60 Hz
Power consumption (max): 500 W
Power source: AC

Security
SSH/SSL support: Yes
Authentication: Portbased authentication
Authentication type: RADIUS
DHCP features: DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes

Operational conditions
Storage relative humidity (HH): 15 90%
Operating temperature (TT): 0 40 C
Storage temperature (TT): 40 70 C
Operating relative humidity (HH): 15 95%

Management features
Switch layer: L2+
Switch type: Managed
Cloudmanaged: Yes
Webbased management: Yes
Quality of Service (QoS) support: Yes

Weight & dimensions
Height: 44 mm
Depth: 350.5 mm
Weight: 4.7 kg
Width: 442.5 mm

Network
Flow control support: Yes
10G support: Yes
Port mirroring: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Link aggregation: Yes
Autosensing: Yes
Full duplex: Yes
Networking standards: IEEE 802.3ad, IEEE 802.1s, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3bt, IEEE 802.1AX, IEEE 802.1ab, IEEE 802.1D, IEEE 802.3z, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.1w
VLAN support: Yes
Auto MDI/MDIX: Yes

Performance
Physical stacking (units): 4
Processor model: ARM CortexA9
Processor frequency: 800 MHz
Builtin processor: Yes

Protocols
IPv4 & IPv6 features: IPv4/IPv6 accesscontrol list (ACL)
IPv6 FIB entries: 32
IPv4 FIB entries: 32

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 24
SFP+ module slots quantity: 2
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Logistics data
Harmonized System (HS) code: 85176990

Data transmission
MAC address table: 16000 entries
Switching capacity: 128 Gbit/s
Latency (10 Gbps): 1.1 s
Latency (10100 Mbps): 4.4 s
Jumbo frames support: Yes
Throughput: 95 Mpps
Latency (1 Gbps): 2.2 s

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 370 W

Multicast features
Multicast support: Yes
