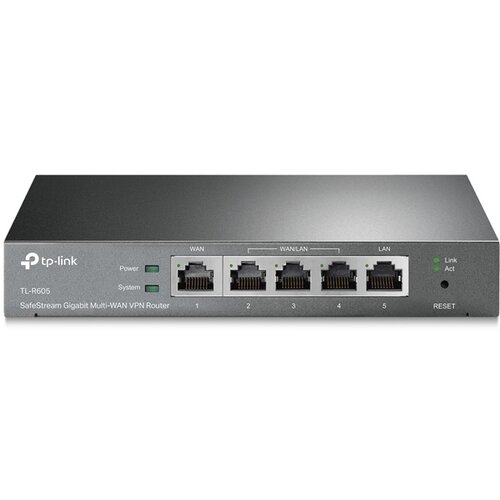

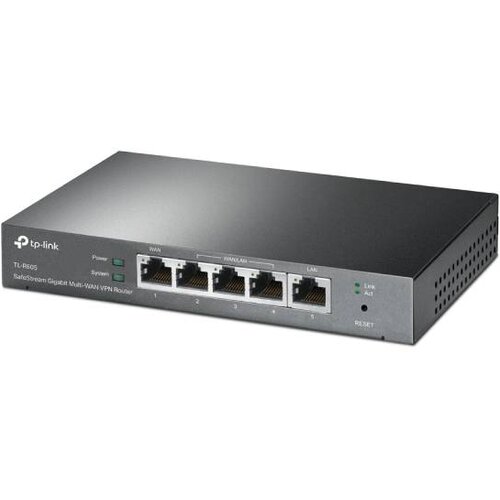

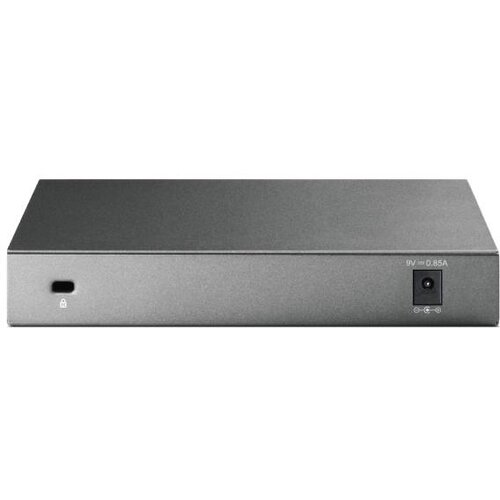

Tp-link Omada Gigabit VPN Router ER605

Technical details
Sustainability certificates: RoHS
Compliance certificates: RoHS
Certification: CE, FCC, RoHS

Features
Windows operating systems supported: Windows XP, Windows 8, Windows 10, Windows 7, Windows 98SE, Windows 2000, Windows 8.1, Windows Vista, Windows NT
Mac operating systems supported: MacOS
Internal memory type: DRAM
Flash memory: 128 MB
Linux operating systems supported: Yes
Internal memory: 256 MB

Design
Rack mounting: Yes
Rack capacity: 1U
Product colour: Black
LED indicators: Activity, WAN, LAN, USB, System
Flash memory: 16 MB
Embedded DRAM (eDRAM) memory: 128 MB

Power
AC input frequency: 50 60 Hz
AC input voltage: 120 240 V
Power consumption (typical): 7.94 W
Power source type: AC
VPN support: 20 IPsec VPN Tunnels LANtoLAN, ClienttoLAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IKEv1/v2 MD5, SHA1 Authentication Algorithm NAT Traversal (NATT) Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) PPTP VPN Server 10 PPTP VPN Clients 16 Tunnels PPTP with MPPE Encryption L2TP VPN Server 10 L2TP VPN Clients 16 Tunnels L2TP over IPSec OpenVPN Server 10 OpenVPN Clients 16 OpenVPN Tunnels
NAT functionality: OnetoOne NAT MultiNet NAT Virtual Server Port Triggering NATDMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Security
Network address translation (NAT): Yes
Security algorithms: 256bit AES, 3DES, MD5, 128bit AES, DES, 192bit AES, SHA1
Firewall: Yes
ARP attack prevention: Yes
DoS attack prevention: Yes
System event log: Yes
Authentication method: SHA1, MD5
VPN tunnels quantity: 20
URL filtering: Yes

Operational conditions
Operating relative humidity (HH): 10 90%
Storage temperature (TT): 40 70 C
Operating temperature (TT): 0 40 C
Storage relative humidity (HH): 5 90%

Management features
Webbased management: Yes
Reset button: Yes
Universal Plug and Play (UPnP): Yes

Weight & dimensions
Height: 25 mm
Width: 158 mm
Depth: 101 mm

Network
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 100, 10, 1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab
Cabling technology: 10/100/1000BaseT(X)
VLAN support: Yes
Traffic control: Yes
Concurrent connections: 150000
Policybased routing: Yes

Packaging data
Manual: Yes
Cables included: AC
Package depth: 254 mm
Quick installation guide: Yes
Package height: 60 mm
Package weight: 650 g
Package width: 190 mm
Quick start guide: Yes
Supported protocols: IPsec/PPTP/L2TP

Protocols
Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
DHCP client: Yes
DHCP server: Yes
DMZ support: Yes
Routing protocols: RIP1, RIP2
Management protocols: Telnet

Ports & interfaces
Ethernet LAN (RJ45) ports: 5
USB ports quantity: 1

WAN connection
Ethernet WAN: Yes
SIM card slot: No
DSL WAN: No
3G/4G USB modem compatibility: No
