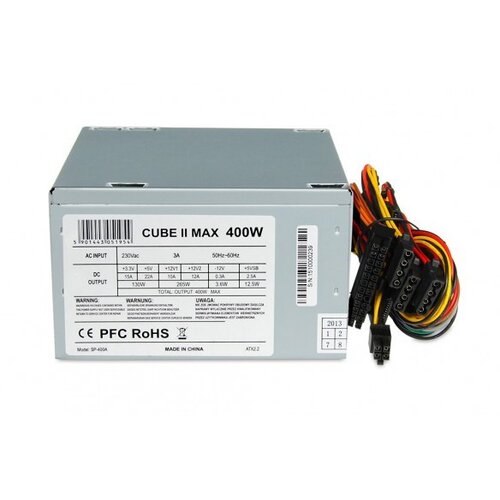

iBox CUBE II power supply unit 400 W 20+4 pin ATX ATX Silver

Technical details
Sustainability certificates: RoHS

Design
Cooling type: Active
Fan location: Side
Fan diameter: 12 cm
Product colour: Silver
Number of fans: 1 fan(s)

Power
Combined power (+3.3V): 130 W
Input current: 3 A
AC input voltage: 230 V
Power consumption (max): 400 W
Total power: 400 W
AC input frequency: 50 60 Hz
Power protection features: Overload, Short circuit, Over voltage, Under voltage, Over current
Max output current (+5V): 22 A
Power Factor Correction (PFC) type: Passive
Combined power (+5V): 130 W
Combined power (+5Vsb): 12.5 W
Max output current (+5Vsb): 2.5 A
Max output current (+12V2): 12 A
Max output current (+3.3V): 15 A
Max output current (12V): 0.3 A
Combined power (12V): 3.6 W
Max output current (+12V1): 10 A

Weight & dimensions
Depth: 85 mm
Width: 140 mm
Height: 150 mm
Certification: CE

Performance
ATX version: 2.2
Safety: UVP / OVP / SCP / OPP / OCP / OTP
Noise level: 20 dB
Power supply unit (PSU) form factor: ATX

Ports & interfaces
Peripheral (Molex) power connectors (4pin): 3
Motherboard power connector: 20+4 pin ATX
ATX power connector (20+4 pin): Yes
Number of SATA power connectors: 2
Cabling type: NonModular
