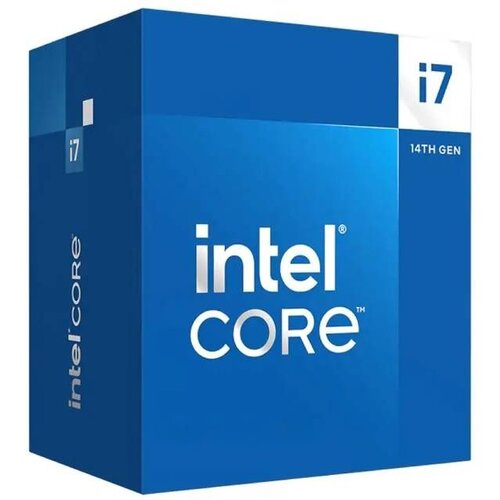

Intel Core i7-14700 processor 33 MB Smart Cache Box

Technical details
OpenCL version: 3.0
Launch date: Q1'24
Status: Launched

Processor
Processor socket: LGA 1700
Processor boost frequency: 5.4 GHz
Processor cache type: Smart Cache
Processor family: Intel Core i7
Stepping: B0
Processor threads: 28
Processor cache: 33 MB
Processor cores: 20
Processor codename: Raptor Lake
Processor manufacturer: Intel
Processor operating modes: 64bit
Processor model: i714700
Memory bandwidth supported by processor (max): 89.6 GB/s
Processor ARK ID: 236781
Box: Yes
Cooler included: Yes
Efficient cores: 12
Performancecore base frequency: 2.1 GHz
Performance cores: 8
Performancecore boost frequency: 5.3 GHz
Efficientcore base frequency: 1.5 GHz
Maximum number of DMI lanes: 8
Processor base power: 65 W
Efficientcore boost frequency: 4.2 GHz
Maximum turbo power: 219 W
Processor generation: Intel Core i7 (14th gen)

Graphics
Onboard graphics card base frequency: 300 MHz
Onboard graphics card: Yes
Discrete graphics card model: Not available
Onboard graphics card DirectX version: 12.0
Onboard graphics card model: Intel UHD Graphics 770
Discrete graphics card: No
Number of execution units: 32
Onboard graphics card dynamic frequency (max): 1600 MHz
Onboard graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a
Onboard graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
Onboard graphics card refresh rate at maximum resolution (HDMI): 60 Hz
Onboard graphics card maximum resolution (DisplayPort): 7680 x 4320 pixels
Onboard graphics card maximum resolution (HDMI): 4096 x 2160 pixels
Onboard graphics card refresh rate at maximum resolution (eDP Integrated Flat Panel): 120 Hz
Onboard graphics card ID: 0xA780
Number of displays supported (onboard graphics): 4
Onboard graphics card maximum resolution (eDP Integrated Flat Panel): 5120 x 3200 pixels
Onboard graphics card OpenGL version: 4.5
MultiFormat Codec Engines: 2

Features
Supported instruction sets: AVX 2.0, SSE4.2, SSE4.1
Execute Disable Bit: Yes
PCI Express slots version: 5.0, 4.0
PCI Express configurations: 1x16+1x4, 2x8+1x4
CPU configuration (max): 1
Maximum number of PCI Express lanes: 20
Embedded options available: Yes
Thermal Monitoring Technologies: Yes
Idle States: Yes
Scalability: 1S
Commodity Classification Automated Tracking System (CCATS): 740.17B1
Export Control Classification Number (ECCN): 5A992C
Market segment: Desktop
Direct Media Interface (DMI) Revision: 4.0
Use conditions: PC/Client/Tablet, Workstation

Memory
ECC: Yes
Memory bandwidth (max): 89.6 GB/s
Memory channels: Dualchannel
Memory types supported by processor: DDR5SDRAM, DDR4SDRAM
Maximum internal memory supported by processor: 192 GB

Operational conditions
Tjunction: 100 C

Weight & dimensions
Processor package size: 45 x 37.5 mm

Processor special features
Intel Quick Sync Video Technology: Yes
Intel Turbo Boost Technology: 2.0
Intel Hyper Threading Technology (Intel HT Technology): Yes
Intel Clear Video HD Technology (Intel CVT HD): Yes
Intel AES New Instructions (Intel AESNI): Yes
Intel Secure Key: Yes
Intel VTx with Extended Page Tables (EPT): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Virtualization Technology for Directed I/O (VTd): Yes
Intel Virtualization Technology (VTx): Yes
Intel 64: Yes
Intel OS Guard: Yes
Intel Boot Guard: Yes
Intel Deep Learning Boost (Intel DL Boost): Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel Volume Management Device (VMD): Yes
Intel Speed Shift Technology: Yes
Modebased Execute Control (MBE): Yes
Intel Turbo Boost Max Technology 3.0 frequency: 5.4 GHz
Intel Controlflow Enforcement Technology (CET): Yes
Intel Thread Director: Yes
Intel Standard Manageability (ISM): Yes
Intel Gaussian & Neural Accelerator (Intel GNA) 3.0: Yes

Other features
Maximum internal memory: 192 GB
Graphics output: eDP 1.4b, DP 1.4a, HDMI 2.1
L2 cache: 28672 KB

Logistics data
Harmonized System (HS) code: 8542310001
