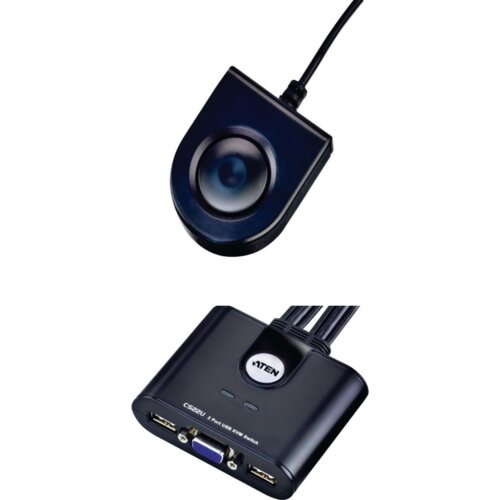

Itc 2-Port USB VGA KVM Switch

Design
Product colour: Black
Housing material: Plastic
Rack mounting: No
LED indicators: Yes

Power
Power source: DC
Input voltage: 5 V
Power consumption (typical): 0.14 W

Operational conditions
Operating temperature (TT): 0 50 C
Storage relative humidity (HH): 0 80%
Storage temperature (TT): 20 60 C
Operating relative humidity (HH): 0 80%

Weight & dimensions
Height: 24.6 mm
Width: 82.4 mm
Weight: 302 g
Depth: 70.1 mm

Performance
HD type: QXGA
Maximum resolution: 2048 x 1536 pixels
DDC2B support: Yes

Packaging data
Package weight: 400 g
Package depth: 155 mm
Package width: 55 mm
Package height: 223 mm

Packaging content
Quick installation guide: Yes

Display
Builtin display: No

Ports & interfaces
USB hub: Yes
USB 2.0 TypeA hub ports quantity: 2
Console ports: USB A, VGA (DSub)
VGA (DSub) ports quantity: 2
Mouse port type: USB
Keyboard port type: USB
USB connector type: USB TypeA
Video port type: VGA
Number of computers controlled: 2

Logistics data
Master (outer) case gross weight: 8.48 kg
Products per master (outer) case: 20 pc(s)
Master (outer) case width: 328 mm
Harmonized System (HS) code: 85176200
Master (outer) case net weight: 6.04 kg
Master (outer) case length: 389 mm
Master (outer) case height: 330 mm
