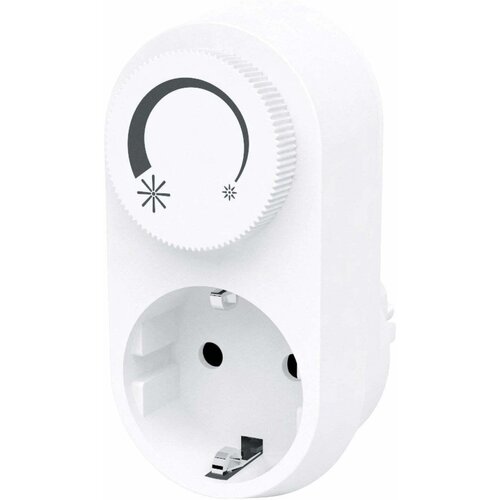

LEDmaxx Zwischenstecker mit integr. LED-Dimmer, weiß EMD201 20270112

Safe lighting accessories for replacement and retrofitting from REV Ritter for a reliable electrical installation in and around the home. Thanks to the use of tested materials and careful workmanship, these triedandtested products guarantee high quality and longlasting use. From simple insulating material sockets to reliable intermediate switches and extendable light pendants REV's extensive product range can fulfil the individual requirements of your home electrics.

• PRACTICAL ideal for dimming your lights via rotary knob
• EASY adapter as an intermediate plug for a standard socket, no installation or electrical connection required
• FUNCTIONAL for incandescent lamps, highvoltage halogen lamps (30200W), and dimmable LEDs 324W
• TECHNICAL SPECIFICATIONS: 230 V; 50 Hz
• SAFE with increased touch protection in the socket

Technical specifications:

• Mounting type: Intermediate plug
• IP protection class: IP20
• Material: Plastic
• Material quality: Polycarbonate (PC)
• Design: Protective contact
• Rated current: 16.000 mA
• Operating mode: Rotary knob
• Rated voltage: 230 V
• Number of protective contact sockets: 1
• Frequency: 50 Hz
• Switching capacity resistive load (incandescent lamp / highvoltage halogen lamp): 30 200 W
• LED switching capacity: 3 24 W
• Protection class: I
• With protective contact plug for BE/DE/NL/RU (Type F): Yes
• Ambient temperature (operation): 0°C – 35°C
• Ambient temperature (storage): 0°C 25°C
• Application area: indoor
• Color: White
• Dimensions (LxWxH): 107 x 55 x 76 mm
• Net weight: 104 g
• Volume in cm³: 447 cm³
• USB: Type of current / voltage type: DC
