NOVOFLEX autom. Umkehrring für Fujifilm GFX

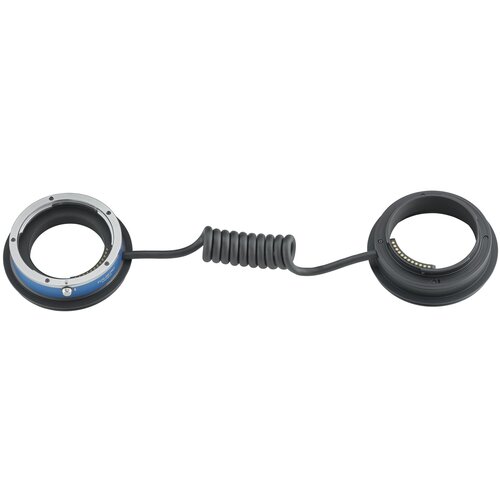

Novoflex FUGRETRO Reverse Adapter Fujifilm GFX

Opens up the world of closeup and extreme macro photography with outstanding quality for the owner of Fujifilm GF wideangle lenses or zooms. The lens is mounted on the body in an inverted position using the reversing ring. The reverse adapter provides full electronic passthrough of all control functions.

Example: With a Fujifilm GF 45100mm f/4.0 R LM OIS WR in reverse position directly on the camera, a magnification factor of 1.1:1 at 100mm focal length up to 1.9:1 at 45mm focal length can be achieved. When used in the normal position on the BALPRO1 bellows, even larger magnification factors are possible: 0.59:1 at 100mm and bellows pushed together up to 3.67:1 at 80mm and bellows completely extended.

The FUGRETRO reverse adapter comes with a filter thread of 77mm by default. For lenses with other filter thread diameters we offer suitable step rings.

The combination of FUGRETRO and the universal bellows of the BALPROseries (BALPRO1, BALPRO T/S and CASTBALPRO) turns them into fullfledged automatic bellows for Fujifilm GFX. The BALPRO T/S even has a tilt/shift capabilities for closeup and macro ranges. The reversing ring allows lenses to be attached to the bellows in both the normal and reverse positions. No separate connection rings are required to connect FUGRETRO to the BALPRO bellows. The Vgroove for clamping in the standards of the bellows device is already present on both sides of the reversing ring.

FUGRETRO has a 77mm filter thread on the back of the lens connection piece for the use of filters and macro ring lights.

Technical specifications:

• Length: 33cm
• Width: 8.8cm
• Height: 2.5cm
• Weight: 263g
• Filter thread: 77mm
