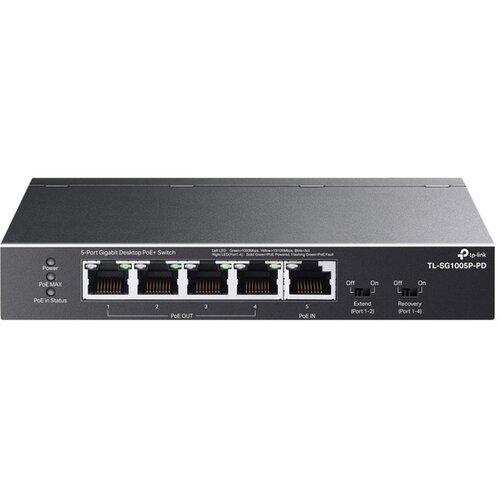

Tp-link | 5-Port Gigabit Desktop Switch with 4-Port PoE | TL-SG1005P-PD | Unmanaged | Desktop/Wall mountable

Certification: CE, FCC, RoHS

Design
LED indicators: Yes
Wall mountable: Yes
Product colour: Black

Power
Power consumption (max): 68.59 W
Power supply included: No
Power source: PoE

Security
IGMP snooping: Yes

Operational conditions
Storage temperature (TT): 40 70 C
Operating relative humidity (HH): 10 90%
Storage relative humidity (HH): 5 90%
Operating temperature (TT): 30 70 C
Heat dissipation: 233.206 BTU/h

Management features
Quality of Service (QoS) support: Yes

Weight & dimensions
Depth: 101 mm
Width: 158 mm
Height: 25 mm

Network
Auto MDI/MDIX: Yes
Cable types supported: Cat3, Cat4, Cat6, Cat5, Cat5e
Copper ethernet cabling technology: 10BASET, 1000BASET, 100BASETX
MAC address autolearning supported: Yes
Autonegotiation: Yes
MAC address autoaging supported: Yes
Flow control support: Yes
10G support: Yes
Networking standards: IEEE 802.3x, IEEE 802.3i, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3bt, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Performance
Fanless: Yes

Packaging data
User guide: Yes
Package type: Box

Ports & interfaces
Basic switching RJ45 Ethernet ports quantity: 5
Basic switching RJ45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Data transmission
Forwarding rate: 7.44 Mpps
Switching capacity: 10 Gbit/s
MAC address table: 2000 entries
Storeandforward: Yes

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 5
Total Power over Ethernet (PoE) budget: 66 W
